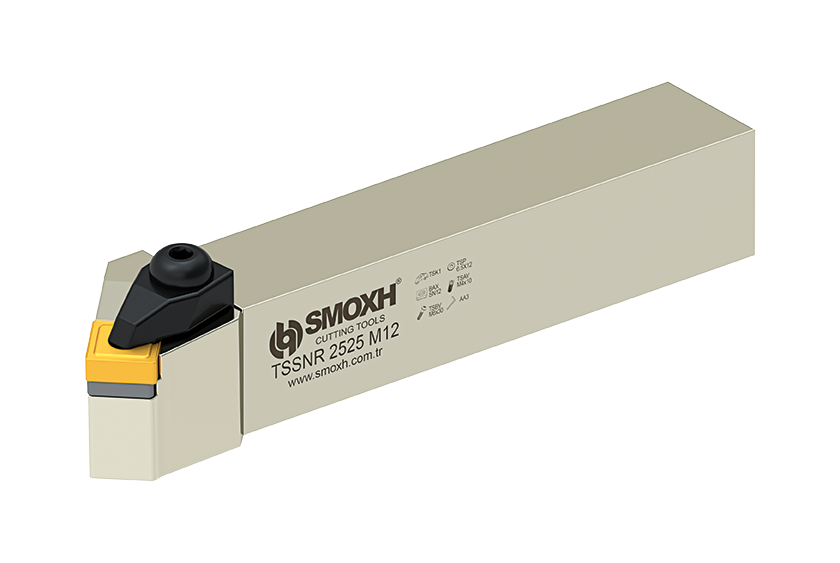

T System External Diameter Turning Tool - TSSNR/L (45)

TSSNR/L (45)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

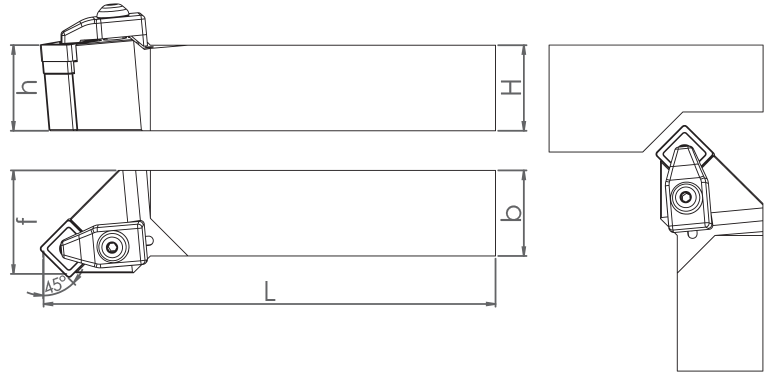

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TSSNR/L (45) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM00544 TSSNR 2020 K12 ISO 45° R 20 20 125 26 0.46 SNM.1204.. 8681408000544
SM00551 TSSNL 2020 K12 ISO 45° L 20 20 125 26 0.46 SNM.1204.. 8681408000551
SM00575 TSSNR 2525 M12 ISO 45° R 25 25 150 32 0.79 SNM.1204.. 8681408000575
SM00582 TSSNL 2525 M12 ISO 45° L 25 25 150 32 0.79 SNM.1204.. 8681408000582
SM00605 TSSNR 3232 P12 ISO 45° R 32 32 170 38 1.38 SNM.1204.. 8681408000605
SM00612 TSSNL 3232 P12 ISO 45° L 32 32 170 38 1.38 SNM.1204.. 8681408000612
SM00735 TSSNR 2525 M15 ISO 45° R 25 25 150 32 0.79 SNM.1506.. 8681408000735
SM00759 TSSNL 2525 M15 ISO 45° L 25 25 150 32 0.79 SNM.1506.. 8681408000759
SM00766 TSSNR 3232 P15 ISO 45° R 32 32 170 38 1.38 SNM.1506.. 8681408000766
SM00797 TSSNL 3232 P15 ISO 45° L 32 32 170 38 1.38 SNM.1506.. 8681408000797
SM00704 TSSNR 4040 S15 ISO 45° R 40 40 250 47 3.12 SNM.1506.. 8681408000704
SM00711 TSSNL 4040 S15 ISO 45° L 40 40 250 47 3.12 SNM.1506.. 8681408000711
SM49079 TSSNR 3232 P19 ISO 45° R 32 32 170 38 1.38 SNM.1906.. 8681408049079
SM49086 TSSNL 3232 P19 ISO 45° L 32 32 170 38 1.38 SNM.1906.. 8681408049086
SM49093 TSSNR 4040 S19 ISO 45° R 40 40 250 47 3.12 SNM.1906.. 8681408049093
SM49109 TSSNL 4040 S19 ISO 45° L 40 40 250 47 3.12 SNM.1906.. 8681408049109
