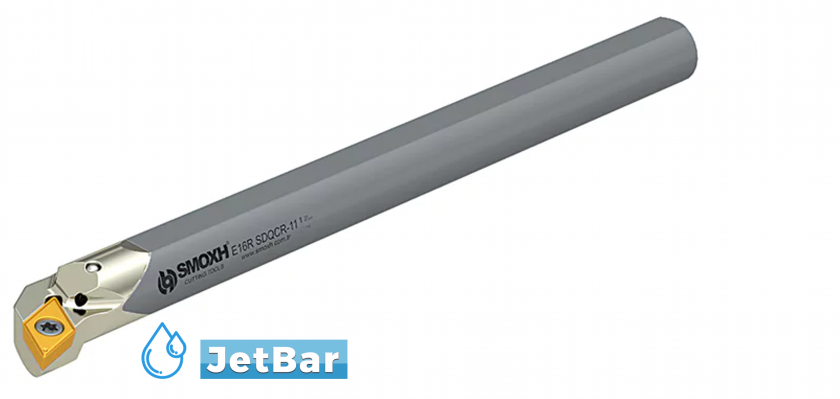

S System Internal Diameter Turning Tools

Ordering Code	Item Designation										Master Insert	Barcode

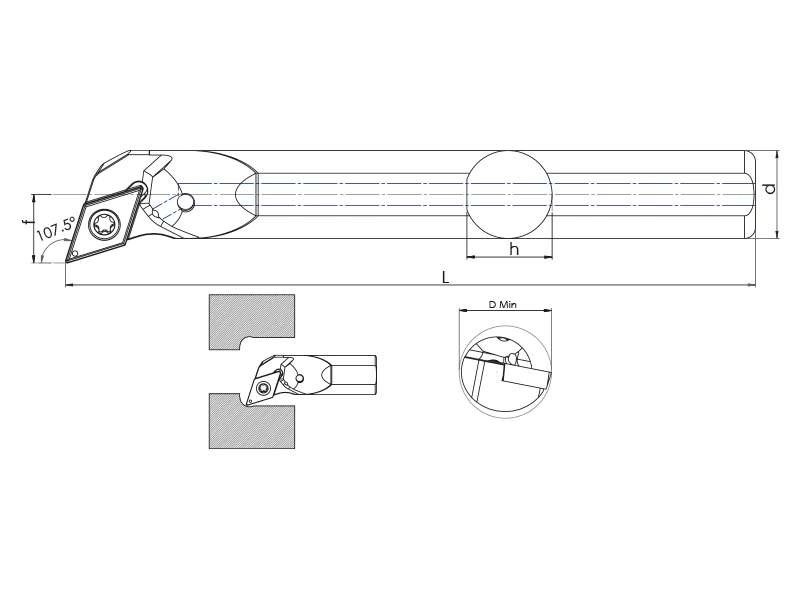

	E-SDQCR/L (107.5)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle
SM59979	E10M SDQCR-07	ISO	10	9.5	150	8	-	≥13	Sağ	107.5°	DCM. 0702..	8681408059979
SM60012	E10M SDQCL-07	ISO	10	9.5	150	8	-	≥13	Sol	107.5°	DCM. 0702..	8681408060012
SM59986	E12Q SDQCR-07	ISO	12	11	180	10	-	≥16	Sağ	107.5°	DCM. 0702..	8681408059986
SM60029	E12Q SDQCL-07	ISO	12	11	180	10	-	≥16	Sol	107.5°	DCM. 0702..	8681408060029
SM59993	E16R SDQCR-11	ISO	16	15	200	13	-	≥21	Sağ	107.5°	DCM. 11T3..	8681408059993
SM60036	E16R SDQCL-11	ISO	16	15	200	13	-	≥21	Sol	107.5°	DCM. 11T3..	8681408060036
SM60005	E20S SDQCR-11	ISO	20	19	250	15	-	≥25	Sağ	107.5°	DCM. 11T3..	8681408060005
SM60043	E20S SDQCL-11	ISO	20	19	250	15	-	≥25	Sol	107.5°	DCM. 11T3..	8681408060043

S System Internal Diameter Turning Tools - E-SDQCR/L (107.5)
