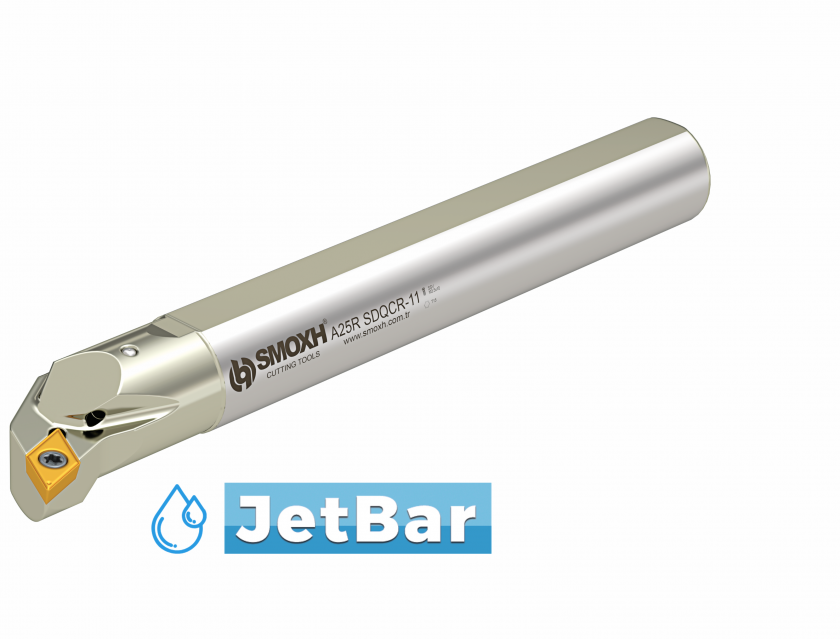

S System Internal Diameter Turning Tools

Ordering Code	Item Designation										Master Insert	Barcode

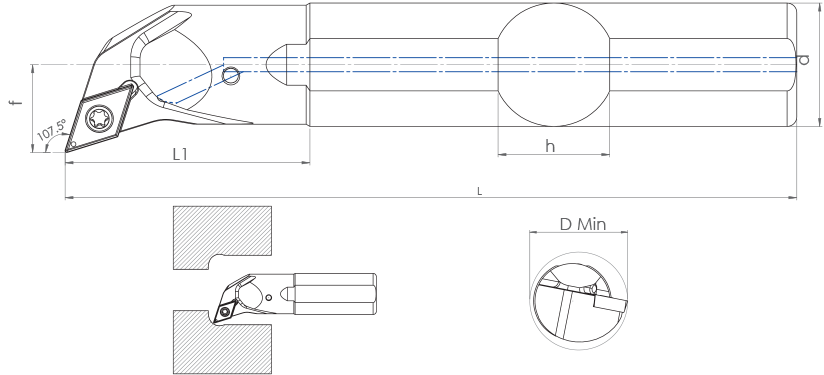

	A-SDQCR/L (107.5)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle
SM36239	A10H SDQCR-07	ISO	10	9	100	8	-	≥13	Sağ	107.5°	DCM. 0702..	8681408036239
SM36246	A10H SDQCL-07	ISO	10	9	100	8	-	≥13	Sol	107.5°	DCM. 0702..	8681408036246
SM36253	A12H SDQCR-07	ISO	12	11	100	10	-	≥16	Sağ	107.5°	DCM. 0702..	8681408036253
SM36260	A12H SDQCL-07	ISO	12	11	100	10	-	≥16	Sol	107.5°	DCM. 0702..	8681408036260
SM36277	A16M SDQCR-07	ISO	16	15	150	13	-	≥21	Sağ	107.5°	DCM. 0702..	8681408036277
SM36284	A16M SDQCL-07	ISO	16	15	150	13	-	≥21	Sol	107.5°	DCM. 0702..	8681408036284
SM36291	A16M SDQCR-11	ISO	16	15	150	13	-	≥21	Sağ	107.5°	DCM. 11T3..	8681408036291
SM36307	A16M SDQCL-11	ISO	16	15	150	13	-	≥21	Sol	107.5°	DCM. 11T3..	8681408036307
SM36314	A20P SDQCR-11	ISO	20	18	170	15	-	≥25	Sağ	107.5°	DCM. 11T3..	8681408036314
SM36321	A20P SDQCL-11	ISO	20	18	170	15	-	≥25	Sol	107.5°	DCM. 11T3..	8681408036321
SM36338	A25R SDQCR-11	ISO	25	23	200	19.5	-	≥32	Sağ	107.5°	DCM. 11T3..	8681408036338
SM36345	A25R SDQCL-11	ISO	25	23	200	19.5	-	≥32	Sol	107.5°	DCM. 11T3..	8681408036345
SM36352	A32S SDQCR-11	ISO	32	30	250	24	-	≥40	Sağ	107.5°	DCM. 11T3..	8681408036352
SM36369	A32S SDQCL-11	ISO	32	30	250	24	-	≥40	Sol	107.5°	DCM. 11T3..	8681408036369

S System Internal Diameter Turning Tools - A-SDQCR/L (107.5)
