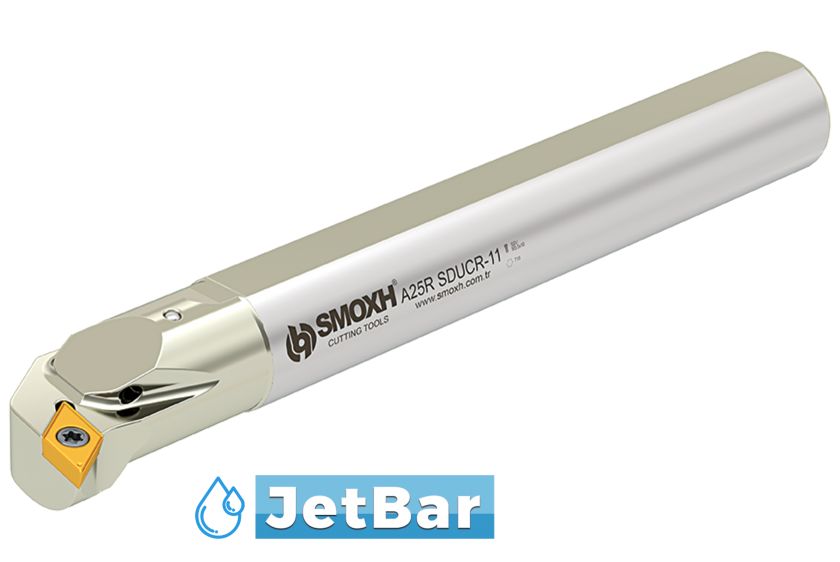

S System Internal Diameter Turning Tools

Ordering Code	Item Designation										Master Insert	Barcode

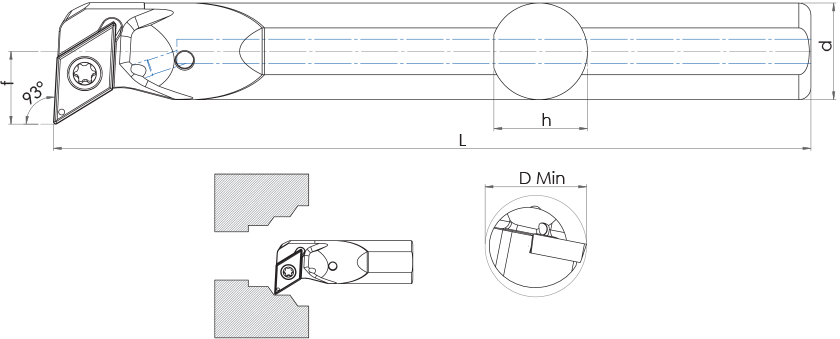

	A-SDUCR/L (93)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle
SM36093	A10H SDUCR-07	ISO	10	9	100	8	-	≥13	Sağ	93°	DCM. 0702..	8681408036093
SM36109	A10H SDUCL-07	ISO	10	9	100	8	-	≥13	Sol	93°	DCM. 0702..	8681408036109
SM36116	A12H SDUCR-07	ISO	12	11	100	10	-	≥16	Sağ	93°	DCM. 0702..	8681408036116
SM36123	A12H SDUCL-07	ISO	12	11	100	10	-	≥16	Sol	93°	DCM. 0702..	8681408036123
SM36130	A16M SDUCR-07	ISO	16	15	150	13	-	≥21	Sağ	93°	DCM. 0702..	8681408036130
SM36147	A16M SDUCL-07	ISO	16	15	150	13	-	≥21	Sol	93°	DCM. 0702..	8681408036147
SM36154	A16M SDUCR-11	ISO	16	15	150	13	-	≥21	Sağ	93°	DCM. 11T3..	8681408036154
SM36161	A16M SDUCL-11	ISO	16	15	150	13	-	≥21	Sol	93°	DCM. 11T3..	8681408036161
SM36178	A20P SDUCR-11	ISO	20	18	170	15	-	≥25	Sağ	93°	DCM. 11T3..	8681408036178
SM36185	A20P SDUCL-11	ISO	20	18	170	15	-	≥25	Sol	93°	DCM. 11T3..	8681408036185
SM36192	A25R SDUCR-11	ISO	25	23	200	19.5	-	≥32	Sağ	93°	DCM. 11T3..	8681408036192
SM36208	A25R SDUCL-11	ISO	25	23	200	19.5	-	≥32	Sol	93°	DCM. 11T3..	8681408036208
SM36215	A32S SDUCR-11	ISO	32	30	250	24	-	≥40	Sağ	93°	DCM. 11T3..	8681408036215
SM36222	A32S SDUCL-11	ISO	32	30	250	24	-	≥40	Sol	93°	DCM. 11T3..	8681408036222

S System Internal Diameter Turning Tools - A-SDUCR/L (93)
