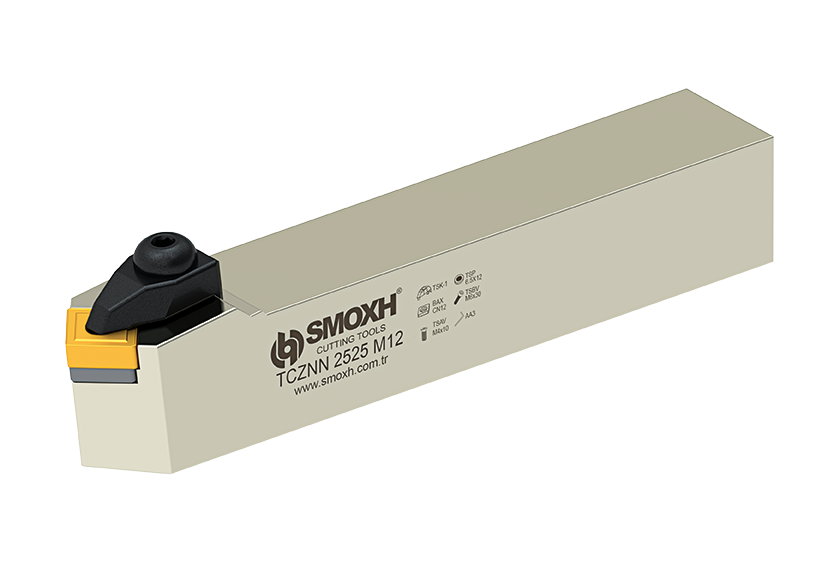

T System External Diameter Turning Tool - TCZNN (40)

TCZNN (40)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

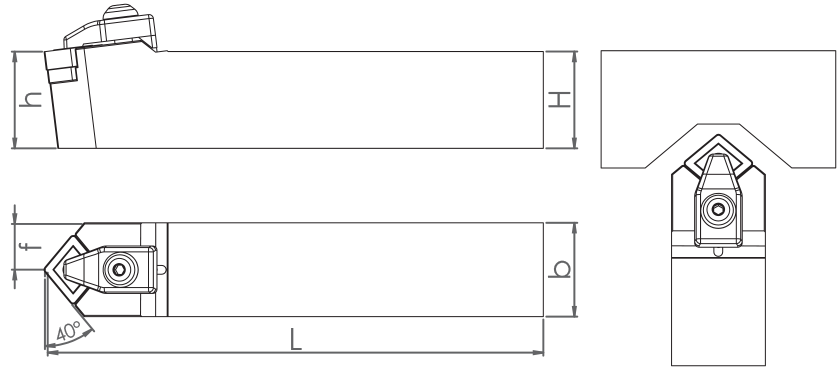

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TCZNN (40) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM00049 TCZNN 2020 K12 ISO 40° N 20 20 125 10 0.46 CNM.1204.. 8681408000049
SM00070 TCZNN 2525 M12 ISO 40° N 25 25 150 12.5 0.79 CNM.1204.. 8681408000070
SM00100 TCZNN 3232 P12 ISO 40° N 32 32 170 16 1.38 CNM.1204.. 8681408000100
SM00162 TCZNN 2525 M16 ISO 40° N 25 25 150 12.5 0.79 CNM.1606.. 8681408000162
SM00254 TCZNN 3232 P16 ISO 40° N 32 32 170 16 1.38 CNM.1606.. 8681408000254
SM00223 TCZNN 4040 S16 ISO 40° N 40 40 250 20 3.12 CNM.1606.. 8681408000223
SM00322 TCZNN 3232 P19 ISO 40° N 32 32 170 16 1.38 CNM.1909.. 8681408000322
SM00315 TCZNN 4040 S19 ISO 40° N 40 40 250 20 3.12 CNM.1909.. 8681408000315
