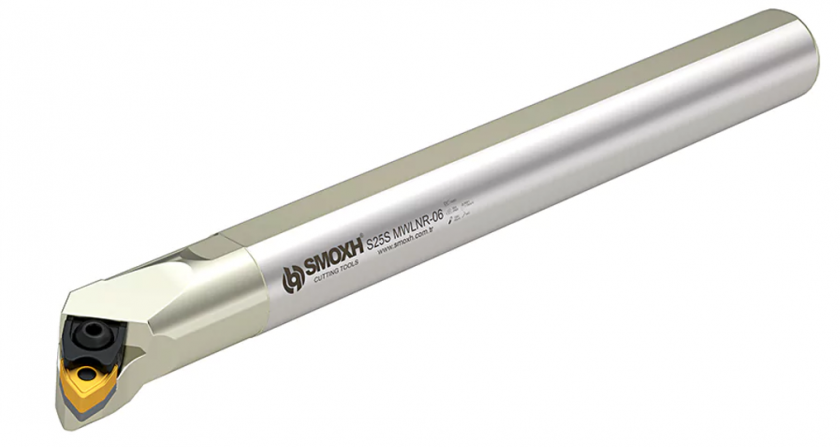

M System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

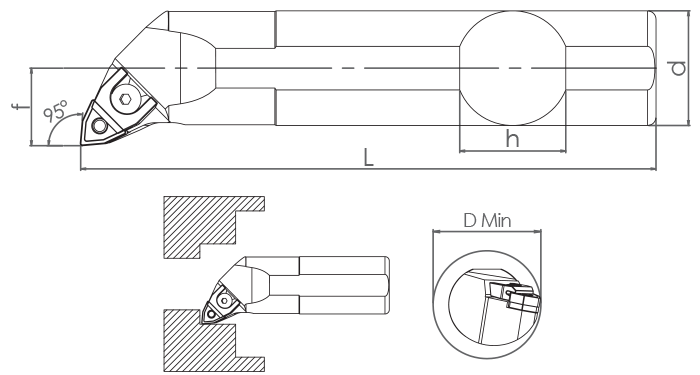

	MWLNR/L (95)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM05792	S16P MWLNR-06	ISO	16	15	170	11	≥21	Sağ	95°	0.28	WNM.0604..	8681408005792
SM05815	S16P MWLNL-06	ISO	16	15	170	11	≥21	Sol	95°	0.28	WNM.0604..	8681408005815
SM05808	S20R MWLNR-06	ISO	20	18	200	15	≥25	Sağ	95°	0.5	WNM.0604..	8681408005808
SM05822	S20R MWLNL-06	ISO	20	18	200	15	≥25	Sol	95°	0.5	WNM.0604..	8681408005822
SM05860	S25S MWLNR-06	ISO	25	23	250	19.5	≥32	Sağ	95°	0.96	WNM.0604..	8681408005860
SM05839	S25S MWLNL-06	ISO	25	23	250	19.5	≥32	Sol	95°	0.96	WNM.0604..	8681408005839
SM05853	S25S MWLNR-08	ISO	25	23	250	19.5	≥32	Sağ	95°	0.96	WNM.0804..	8681408005853
SM05891	S25S MWLNL-08	ISO	25	23	250	19.5	≥32	Sol	95°	0.96	WNM.0804..	8681408005891
SM05877	S32T MWLNR-08	ISO	32	30	300	24	≥40	Sağ	95°	1.84	WNM.0804..	8681408005877
SM05907	S32T MWLNL-08	ISO	32	30	300	24	≥40	Sol	95°	1.84	WNM.0804..	8681408005907
SM05884	S40U MWLNR-08	ISO	40	37	350	30	≥50	Sağ	95°	3.4	WNM.0804..	8681408005884
SM05914	S40U MWLNL-08	ISO	40	37	350	30	≥50	Sol	95°	3.4	WNM.0804..	8681408005914
SM05846	S50V MWLNR-08	ISO	50	47	400	38	≥63	Sağ	95°	5.8	WNM.0804..	8681408005846
SM05921	S50V MWLNL-08	ISO	50	47	400	38	≥63	Sol	95°	5.8	WNM.0804..	8681408005921

M System Internal Diameter Turning Tools - MWLNR/L (95)
