M System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

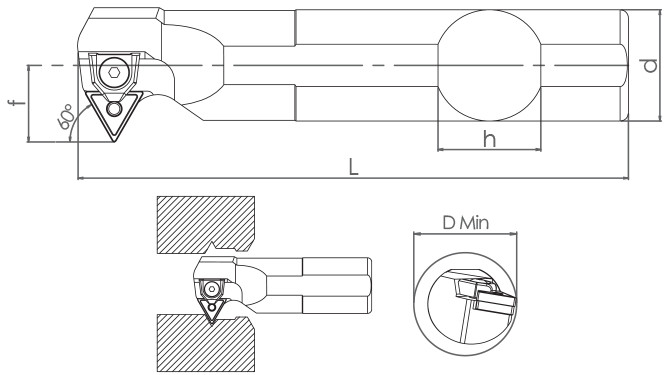

	MT-NR/L (60)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)

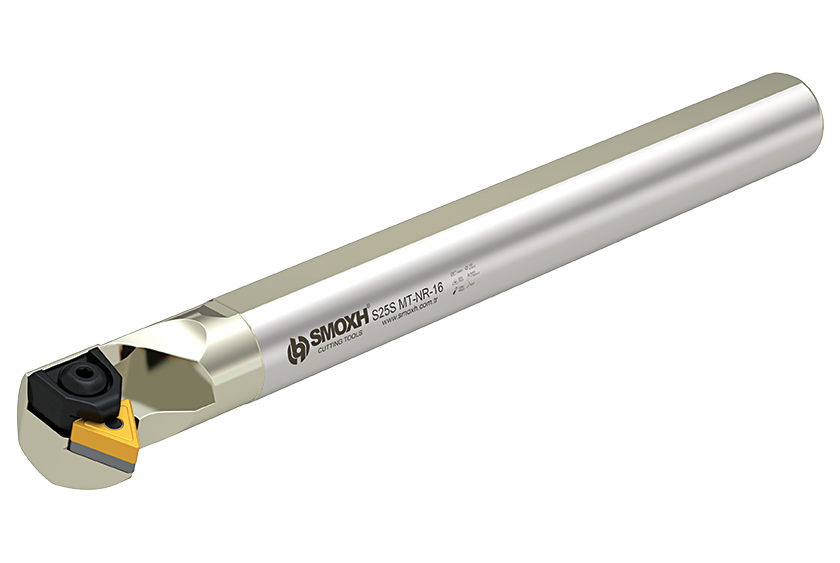

SM23642	S25S MT-NR-16	ISO	25	23	250	19.5	≥33	Sağ	60°	0.96	TNM.1604..	8681408023642
SM23659	S25S MT-NL-16	ISO	25	23	250	19.5	≥33	Sol	60°	0.96	TNM.1604..	8681408023659
SM23673	S32T MT-NR-16	ISO	32	30	300	24	≥40	Sağ	60°	1.84	TNM.1604..	8681408023673
SM23666	S32T MT-NL-16	ISO	32	30	300	24	≥40	Sol	60°	1.84	TNM.1604..	8681408023666
SM22379	S40U MT-NR-16	ISO	40	37	350	30	≥50	Sağ	60°	3.4	TNM.1604..	8681408022379
SM05600	S40U MT-NL-16	ISO	40	37	350	30	≥50	Sol	60°	3.4	TNM.1604..	8681408005600
SM05662	S32T MT-NR-22	ISO	32	30	300	24	≥40	Sağ	60°	1.84	TNM.2204..	8681408005662
SM05617	S32T MT-NL-22	ISO	32	30	300	24	≥40	Sol	60°	1.84	TNM.2204..	8681408005617
SM05693	S40U MT-NR-22	ISO	40	37	350	30	≥50	Sağ	60°	3.4	TNM.2204..	8681408005693
SM05747	S40U MT-NL-22	ISO	40	37	350	30	≥50	Sol	60°	3.4	TNM.2204..	8681408005747
SM05778	S50V MT-NR-22	ISO	50	47	400	38	≥63	Sağ	60°	5.8	TNM.2204..	8681408005778
SM05785	S50V MT-NL-22	ISO	50	47	400	38	≥63	Sol	60°	5.8	TNM.2204..	8681408005785

M System Internal Diameter Turning Tools - MT-NR/L (60)
