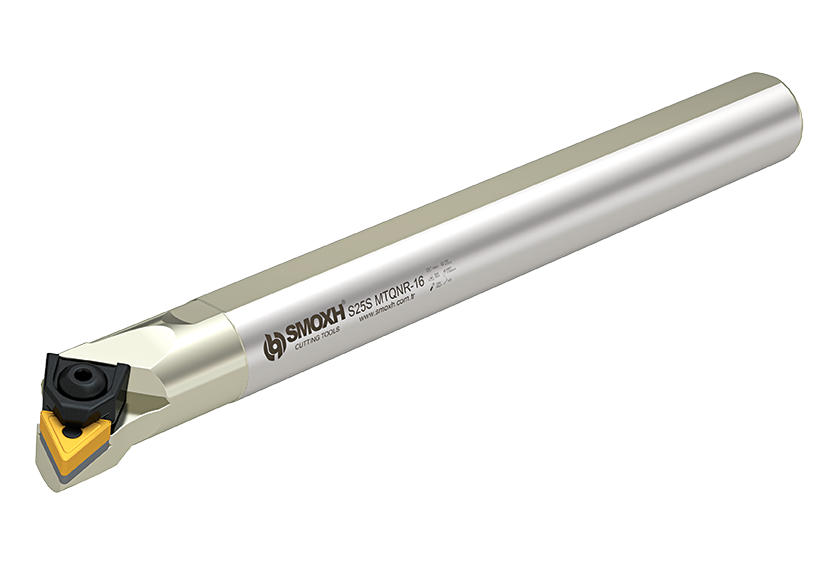

M System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

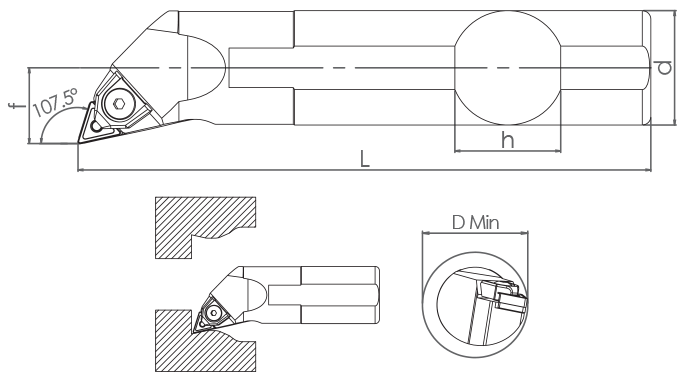

	MTQNR/L (107.5)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM22188	S20R MTQNR-16	ISO	20	18	200	15	≥26	Sağ	107.5°	0.5	TNM.1604..	8681408022188
SM22195	S20R MTQNL-16	ISO	20	18	200	15	≥26	Sol	107.5°	0.5	TNM.1604..	8681408022195
SM23543	S25S MTQNR-16	ISO	25	23	250	19.5	≥32	Sağ	107.5°	0.96	TNM.1604..	8681408023543
SM23550	S25S MTQNL-16	ISO	25	23	250	19.5	≥32	Sol	107.5°	0.96	TNM.1604..	8681408023550
SM20665	S32T MTQNR-16	ISO	32	30	300	24	≥40	Sağ	107.5°	1.84	TNM.1604..	8681408020665
SM20894	S32T MTQNL-16	ISO	32	30	300	24	≥40	Sol	107.5°	1.84	TNM.1604..	8681408020894
SM22362	S40U MTQNR-16	ISO	40	37	350	30	≥50	Sağ	107.5°	3.4	TNM.1604..	8681408022362
SM22355	S40U MTQNL-16	ISO	40	37	350	30	≥50	Sol	107.5°	3.4	TNM.1604..	8681408022355
SM05655	S32T MTQNR-22	ISO	32	30	300	24	≥40	Sağ	107.5°	1.84	TNM.2204..	8681408005655
SM05723	S32T MTQNL-22	ISO	32	30	300	24	≥40	Sol	107.5°	1.84	TNM.2204..	8681408005723
SM05686	S40U MTQNR-22	ISO	40	37	350	30	≥50	Sağ	107.5°	3.4	TNM.2204..	8681408005686
SM05730	S40U MTQNL-22	ISO	40	37	350	30	≥50	Sol	107.5°	3.4	TNM.2204..	8681408005730
SM05631	S50V MTQNR-22	ISO	50	47	400	38	≥63	Sağ	107.5°	5.8	TNM.2204..	8681408005631
SM05761	S50V MTQNL-22	ISO	50	47	400	38	≥63	Sol	107.5°	5.8	TNM.2204..	8681408005761

M System Internal Diameter Turning Tools - MTQNR/L (107.5)
