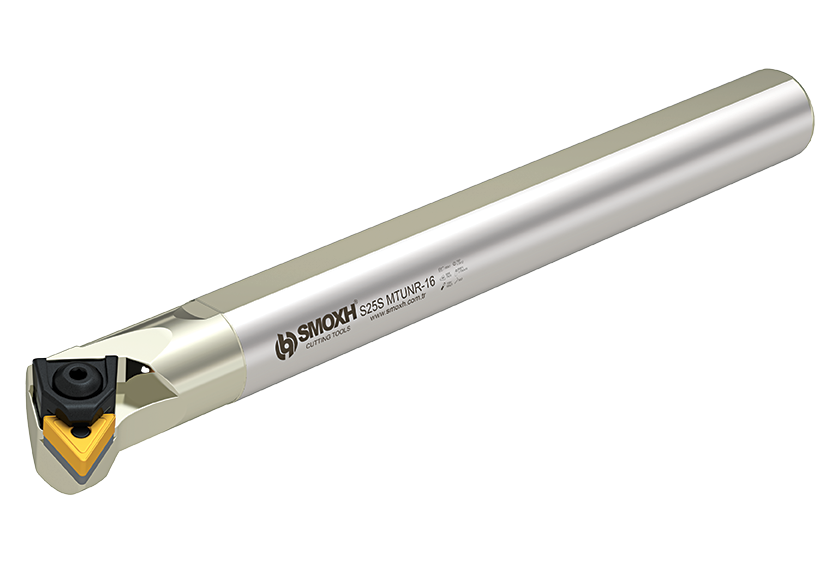

M System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

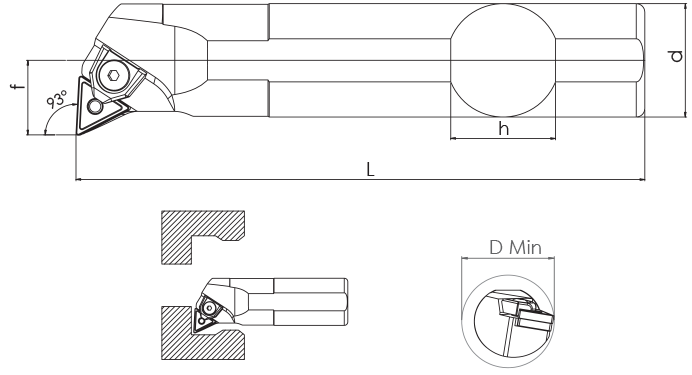

	MTUNR/L (93)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM22072	S20R MTUNR-16	ISO	20	18	200	15	≥26	Sağ	93°	0.5		TNM.1604..	8681408022072
SM23529	S20R MTUNL-16	ISO	20	18	200	15	≥26	Sol	93°	0.5		TNM.1604..	8681408023529
SM23536	S25S MTUNR-16	ISO	25	23	250	19.5	≥32	Sağ	93°	0.96		TNM.1604..	8681408023536
SM23567	S25S MTUNL-16	ISO	25	23	250	19.5	≥32	Sol	93°	0.96		TNM.1604..	8681408023567
SM20870	S32T MTUNR-16	ISO	32	30	300	24	≥40	Sağ	93°	1.84		TNM.1604..	8681408020870
SM20887	S32T MTUNL-16	ISO	32	30	300	24	≥40	Sol	93°	1.84		TNM.1604..	8681408020887
SM20979	S40U MTUNR-16	ISO	40	37	350	30	≥50	Sağ	93°	3.4		TNM.1604..	8681408020979
SM20986	S40U MTUNL-16	ISO	40	37	350	30	≥50	Sol	93°	3.4		TNM.1604..	8681408020986
SM05648	S32T MTUNR-22	ISO	32	30	300	24	≥40		93°	1.84	Sağ	TNM.2204..	8681408005648
SM05679	S40U MTUNR-22	ISO	40	37	350	30	≥50		93°	3.4	Sağ	TNM.2204..	8681408005679
SM05709	S50V MTUNR-22	ISO	50	47	400	38	≥63		93°	5.8	Sağ	TNM.2204..	8681408005709

M System Internal Diameter Turning Tools - MTUNR/L (93)
