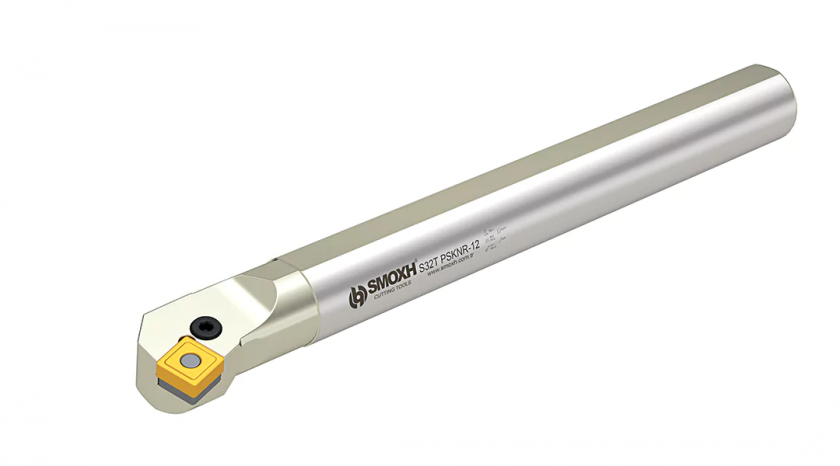

P System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

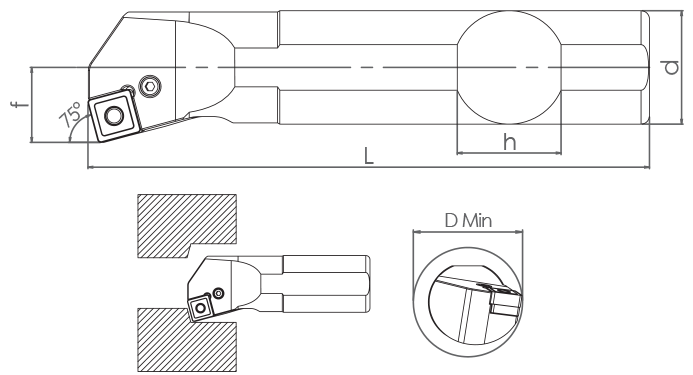

	PSKNR/L (75)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM06157	S25S PSKNR-12	ISO	25	23	250	17	≥32	Sağ	75°	0.95	SNM.1204..	8681408006157
SM06164	S25S PSKNL-12	ISO	25	23	250	17	≥32	Sol	75°	0.95	SNM.1204..	8681408006164
SM06171	S32T PSKNR-12	ISO	32	30	300	22	≥40	Sağ	75°	1.82	SNM.1204..	8681408006171
SM06188	S32T PSKNL-12	ISO	32	30	300	22	≥40	Sol	75°	1.82	SNM.1204..	8681408006188
SM06195	S40U PSKNR-12	ISO	40	37	350	27	≥50	Sağ	75°	3.36	SNM.1204..	8681408006195
SM06201	S40U PSKNL-12	ISO	40	37	350	27	≥50	Sol	75°	3.36	SNM.1204..	8681408006201
SM06218	S32T PSKNR-15	ISO	32	30	300	22	≥40	Sağ	75°	1.82	SNM.1506..	8681408006218
SM06225	S32T PSKNL-15	ISO	32	30	300	22	≥40	Sol	75°	1.82	SNM.1506..	8681408006225
SM06232	S40U PSKNR-15	ISO	40	37	350	27	≥50	Sağ	75°	3.36	SNM.1506..	8681408006232
SM06249	S40U PSKNL-15	ISO	40	37	350	27	≥50	Sol	75°	3.36	SNM.1506..	8681408006249
SM37779	S50V PSKNR-15	ISO	50	47	400	35	≥63	Sağ	75°	5.5	SNM.1506..	8681408037779
SM37786	S50V PSKNL-15	ISO	50	47	400	35	≥63	Sol	75°	5.5	SNM.1506..	8681408037786

P System Internal Diameter Turning Tools - PSKNR/L (75)
