P System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

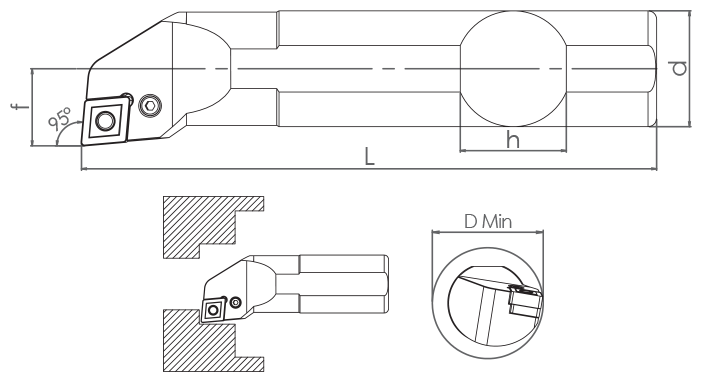

	PCLNR/L (95)	Diamond Brand	d	h	L	f	D Min	Direction	Approach Angle	Weight (Kg)
SM05938	S25S PCLNR-12	ISO	25	23	250	17	≥32	Sağ	95°	0.95	CNM.1204..	8681408005938
SM05945	S25S PCLNL-12	ISO	25	23	250	17	≥32	Sol	95°	0.95	CNM.1204..	8681408005945

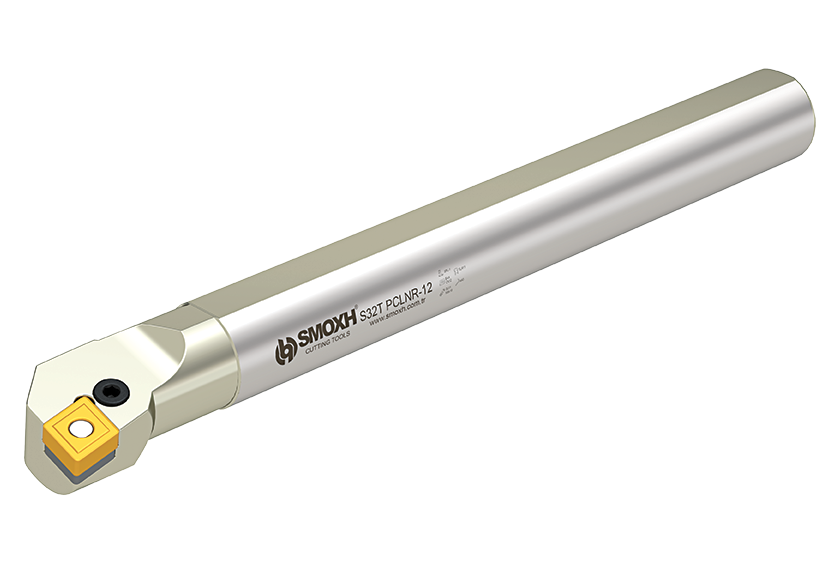

SM05952	S32T PCLNR-12	ISO	32	30	300	22	≥40	Sağ	95°	1.82	CNM.1204..	8681408005952
SM05969	S32T PCLNL-12	ISO	32	30	300	22	≥40	Sol	95°	1.82	CNM.1204..	8681408005969
SM05976	S40U PCLNR-12	ISO	40	37	350	27	≥50	Sağ	95°	3.36	CNM.1204..	8681408005976
SM05983	S40U PCLNL-12	ISO	40	37	350	27	≥50	Sol	95°	3.36	CNM.1204..	8681408005983
SM05990	S32T PCLNR-16	ISO	32	30	300	22	≥40	Sağ	95°	1.82	CNM.1606..	8681408005990
SM06003	S32T PCLNL-16	ISO	32	30	300	22	≥40	Sol	95°	1.82	CNM.1606..	8681408006003
SM06010	S40U PCLNR-16	ISO	40	37	350	27	≥50	Sağ	95°	3.36	CNM.1606..	8681408006010
SM06027	S40U PCLNL-16	ISO	40	37	350	27	≥50	Sol	95°	3.36	CNM.1606..	8681408006027
SM37694	S50V PCLNR-16	ISO	50	47	400	35	≥63	Sağ	95°	5.5	CNM.1606..	8681408037694
SM37700	S50V PCLNL-16	ISO	50	47	400	35	≥63	Sol	95°	5.5	CNM.1606..	8681408037700
SM37717	S40U PCLNR-19	ISO	40	37	350	27	≥50	Sağ	95°	3.36	CNM.1906..	8681408037717
SM37724	S40U PCLNL-19	ISO	40	37	350	27	≥50	Sol	95°	3.36	CNM.1906..	8681408037724
SM37731	S50V PCLNR-19	ISO	50	47	400	35	≥63	Sağ	95°	5.5	CNM.1906..	8681408037731
SM37748	S50V PCLNL-19	ISO	50	47	400	35	≥63	Sol	95°	5.5	CNM.1906..	8681408037748

P System Internal Diameter Turning Tools - PCLNR/L (95)
