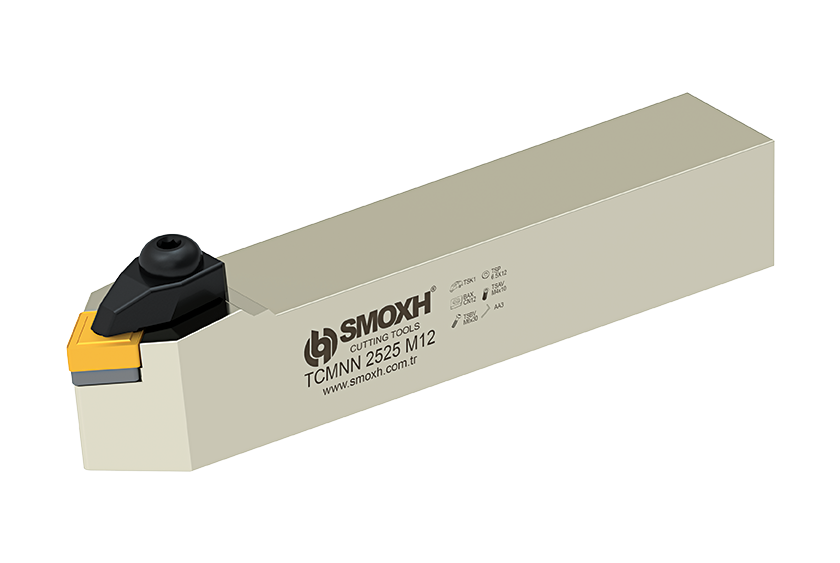

T System External Diameter Turning Tool - TCMNN (50)

TCMNN (50)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

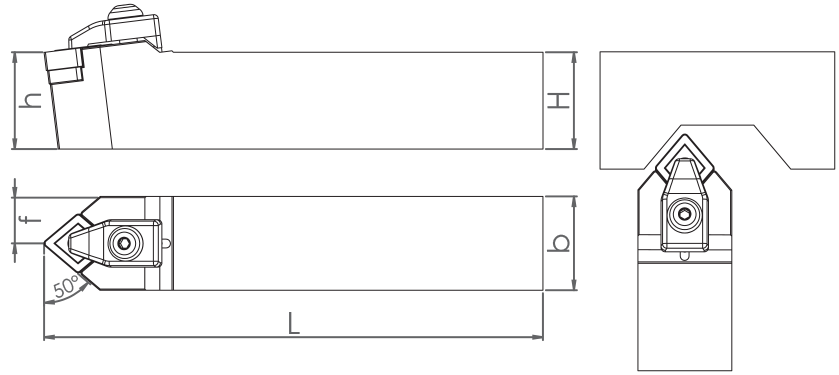

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TCMNN (50) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM00131 TCMNN 1616 H12 ISO 50° N 16 16 100 8 0.26 CNM.1204.. 8681408000131
SM00117 TCMNN 2020 K12 ISO 50° N 20 20 125 10 0.46 CNM.1204.. 8681408000117
SM00124 TCMNN 2525 M12 ISO 50° N 25 25 150 12.5 0.79 CNM.1204.. 8681408000124
SM00018 TCMNN 3232 P12 ISO 50° N 32 32 170 16 1.38 CNM.1204.. 8681408000018
SM00230 TCMNN 2525 M16 ISO 50° N 25 25 150 12.5 0.79 CNM.1606.. 8681408000230
SM00247 TCMNN 3232 P16 ISO 50° N 32 32 170 16 1.38 CNM.1606.. 8681408000247
SM00216 TCMNN 4040 S16 ISO 50° N 40 40 250 20 3.12 CNM.1606.. 8681408000216
SM00339 TCMNN 3232 P19 ISO 50° N 32 32 170 16 1.38 CNM.1606.. 8681408000339
SM00308 TCMNN 4040 S19 ISO 50° N 40 40 250 20 3.12 CNM.1909.. 8681408000308
