90 Milling Tools

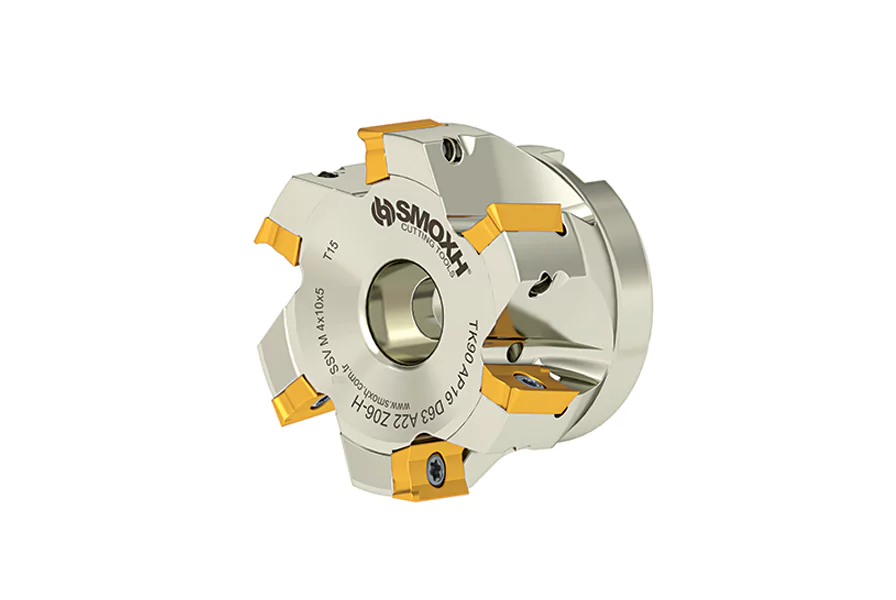

TK90 APKT 1604.. ISO

TK90 APKT 1604.. ISO
TK90 APKT 1604.. ISO

Ordering Code

Item Designation

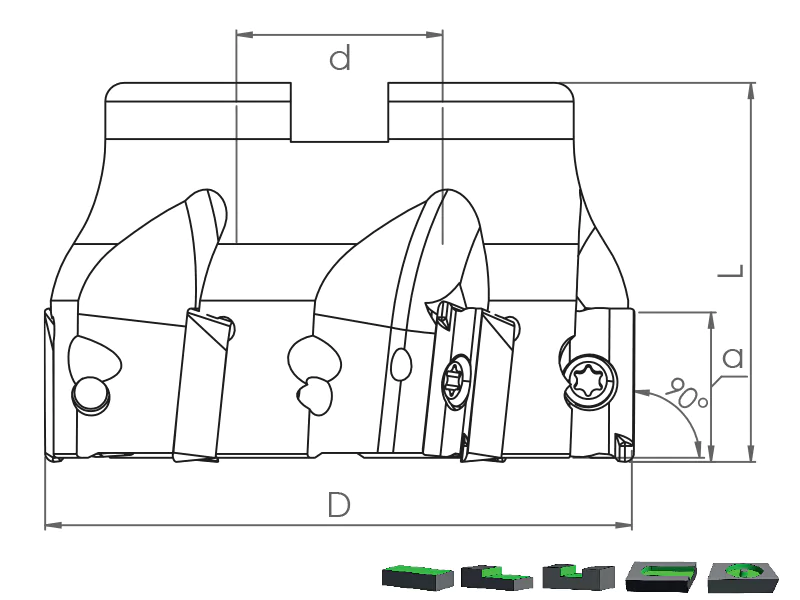

Dimensions (mm)

Master Insert*

TK90 APKT 1604..

ISO

D

Z

d

L

a

SM29255

TK90 AP16 D40 A16 Z04-H

40

4

16

40

16

APKT 1604..

SM14046

TK90 AP16 D40 A16 Z04

-

40

4

16

40

16

SM29248

TK90 AP16 D50 A22 Z05-H

50

5

22

40

16

SM14053

TK90 AP16 D50 A22 Z05

-

50

5

22

40

16

SM29231

TK90 AP16 D63 A22 Z06-H

63

6

22

40

16

SM14060

TK90 AP16 D63 A22 Z06

-

63

6

22

40

16

SM29224

TK90 AP16 D80 A27 Z07-H

80

7

27

50

16

SM14077

TK90 AP16 D80 A27 Z07

-

80

7

27

50

16

SM29217

TK90 AP16 D100 A32 Z08-H

100

8

32

50

16

SM14084

TK90 AP16 D100 A32 Z08

-

100

8

32

50

16

SM14091

TK90 AP16 D125 B40 Z09

-

125

9

40

63

16

SM14107

TK90 AP16 D160 C40 Z10

-

160

10

40

63

16

SM14114

TK90 AP16 D200 C60 Z12

-

200

12

60

63

16

Size Designation

Master Insert*

Spare Parts

Screw

Torx Key

Screw Torque Value

N.m

D25 - D200

APKT 1604..

SSV

M4x9x5-9528

STK-T15-9910

3,0
Product Notes
