45 Milling Tools

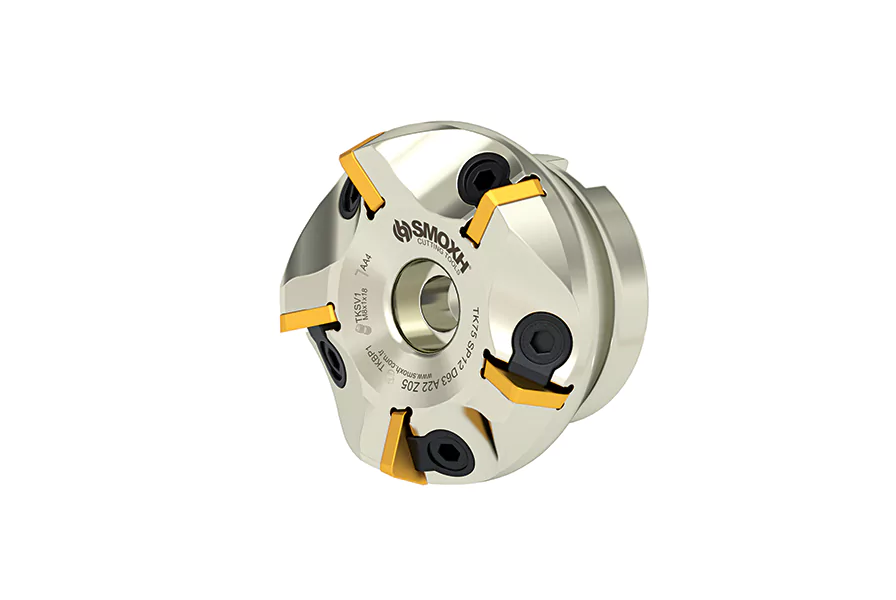

TK75 SPKN 1203.. ISO
|
Ordering Code |
Item Designation |

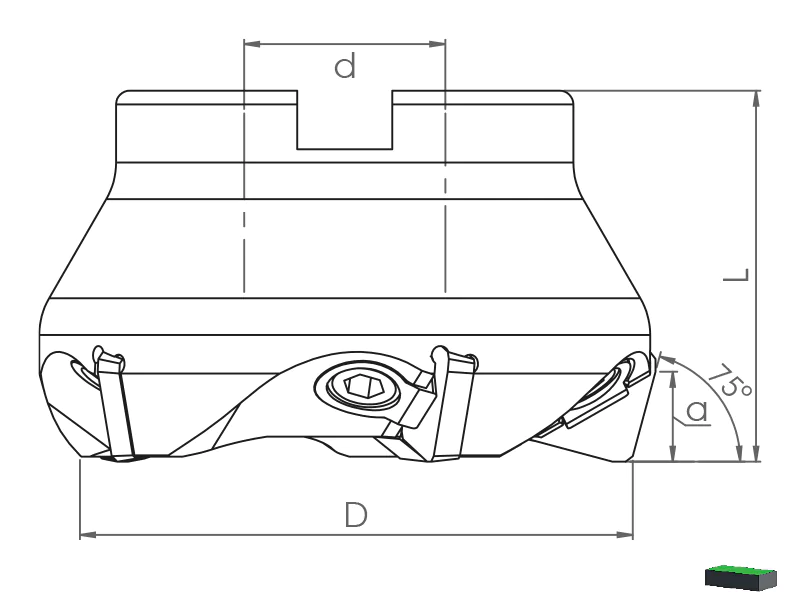

Dimensions (mm) |
Master Insert* |
|||||
|
TK75 SPKN 1203.. ISO |
|
D |
Z |
d |
L |
a |
|
|
|
SM32675 |
TK75 SP12 D50 A22 Z04 |
- |
50 |
4 |
22 |
40 |
9.5 |
SPKN 1203.. |
|
SM32682 |
TK75 SP12 D63 A22 Z05 |
- |
63 |
5 |
22 |
40 |
9.5 |
|
|
SM32705 |
TK75 SP12 D80 A27 Z06 |
- |
80 |
6 |
27 |
50 |
9.5 |
|
|
SM32729 |
TK75 SP12 D100 A32 Z07 |
- |
100 |
7 |
32 |
50 |
9.5 |
|
|
SM32743 |
TK75 SP12 D125 B40 Z08 |
- |
125 |
8 |
40 |
63 |
9.5 |
|
|
SM38547 |
TK75 SP12 D160 C40 Z09 |
- |
160 |
9 |
40 |
63 |
9.5 |
|
|
SM32750 |
TK75 SP12 D200 C60 Z12 |
- |
200 |
12 |
60 |
63 |
9.5 |
|
|
SM38530 |
TK75 SP12 D315 D60 Z18 |
- |
315 |
18 |
60 |
63 |
9.5 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Clamp Part |
Screw |
Allen Key |
|
|
|
|
|
||
|
D50 - D315 |
SPKN.. 1203.. |
TKBP 9116 |
TKSV M8x1x18 9227 |
SAK-AA5-9904 |
