45 Milling Tools

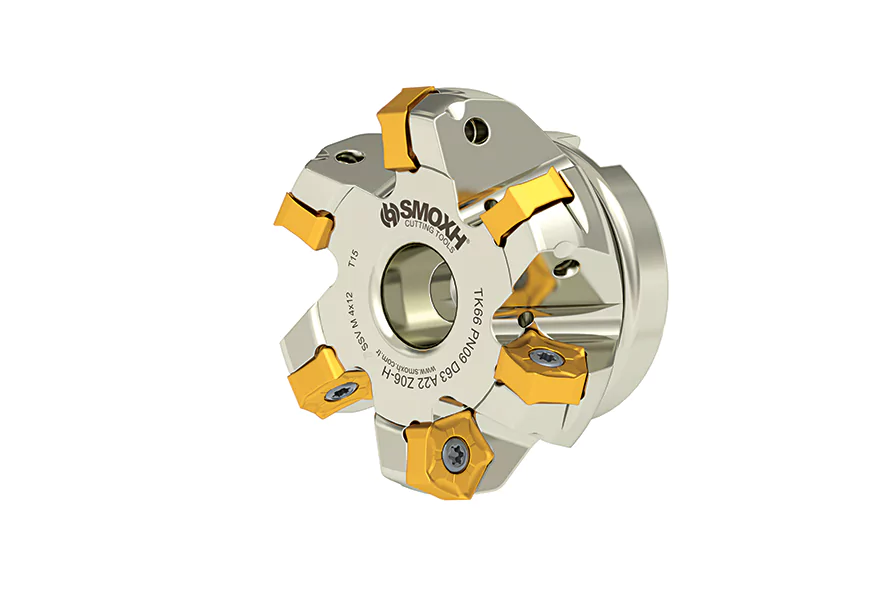

TK66 PNMU 0905..
|
Ordering Code |
Item Designation |

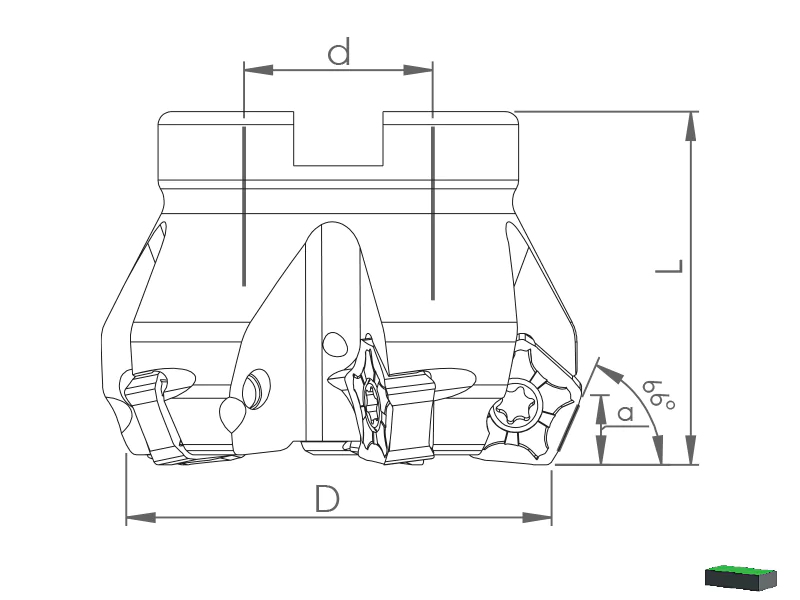

Dimensions (mm) |
Master Insert* |
|||||
|
TK66 PNMU 0905.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM46931 |
TK66 PN09 D50 A22 Z05-H |
|
50 |
5 |
22 |
40 |
6 |
PNMU 0905.. |
|
SM46948 |
TK66 PN09 D63 A22 Z06-H |
|
63 |
6 |
22 |
40 |
6 |
|
|
SM46955 |
TK66 PN09 D80 A27 Z08-H |
|
80 |
8 |
27 |
50 |
6 |
|
|
SM46962 |
TK66 PN09 D100 A32 Z10-H |
|
100 |
10 |
32 |
50 |
6 |
|
|
SM46979 |
TK66 PN09 D125 B40 Z12 |
- |
125 |
12 |
40 |
63 |
6 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D50- D125 |
PNMU 0905.. |
SSV M4x12x5-9529 |
STK-T15-9910 |
4,3 |
