45 Milling Tools

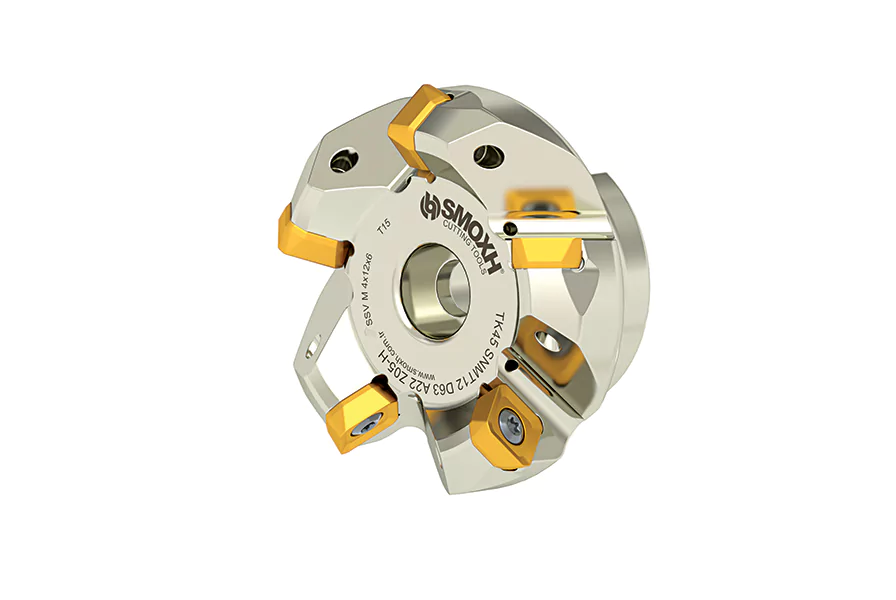

TK45 SNMT 1205..
|
Ordering Code |
Item Designation |

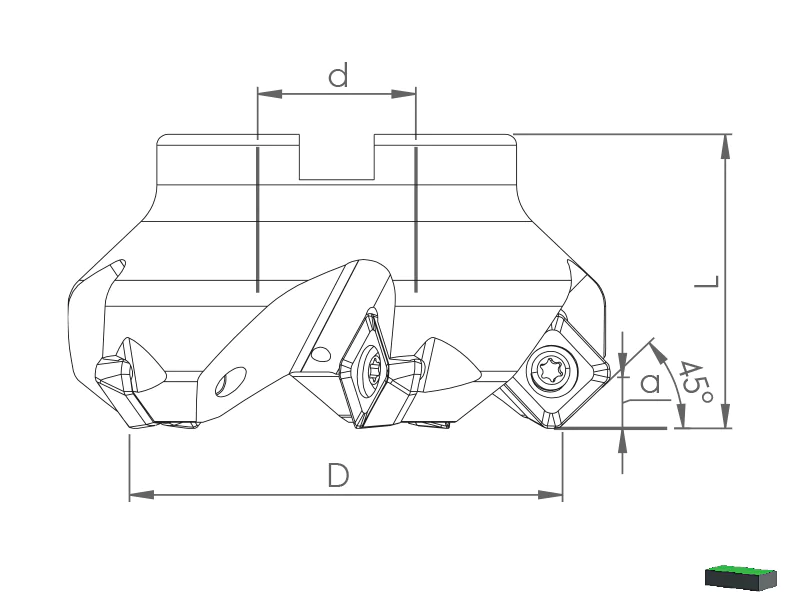

Dimensions (mm) |
Master Insert* |
|||||
|
TK45 SNMT 1205.. |
|
D |
Z |
d |
L |
a |
|
|
|
TK45 SNMT12 D50 A22 Z04-H |
|
50 |
4 |
22 |
40 |
6.5 |
SNMT 1205.. |
|
|
TK45 SNMT12 D63 A22 Z05-H |
|
63 |
5 |
22 |
40 |
6.5 |
||
|
TK45 SNMT12 D80 A27 Z06-H |
|
80 |
6 |
27 |
50 |
6.5 |
||
|
TK45 SNMT12 D100 A32 Z07-H |
|
100 |
7 |
32 |
50 |
6.5 |
||
|
TK45 SNMT12 D125 B40 Z08 |
- |
125 |
8 |
40 |
63 |
6.5 |
||
|
TK45 SNMT12 D160 C40 Z10 |
- |
160 |
10 |
40 |
63 |
6.5 |
||
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert** |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D50 - D160 |
SNMT 1205.. |
SSV M4x12x6-9517 |
STK-T15-9910 |
4,3 |
