45 Milling Tools

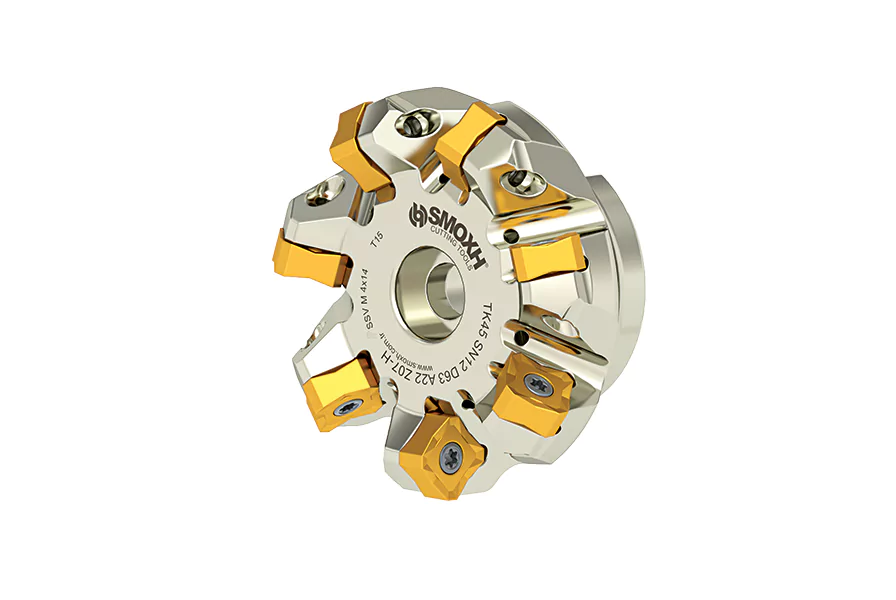

TK45 SN.. 1206..

TK45 SN.. 1206..
TK45 SN.. 1206..

Ordering Code

Item Designation

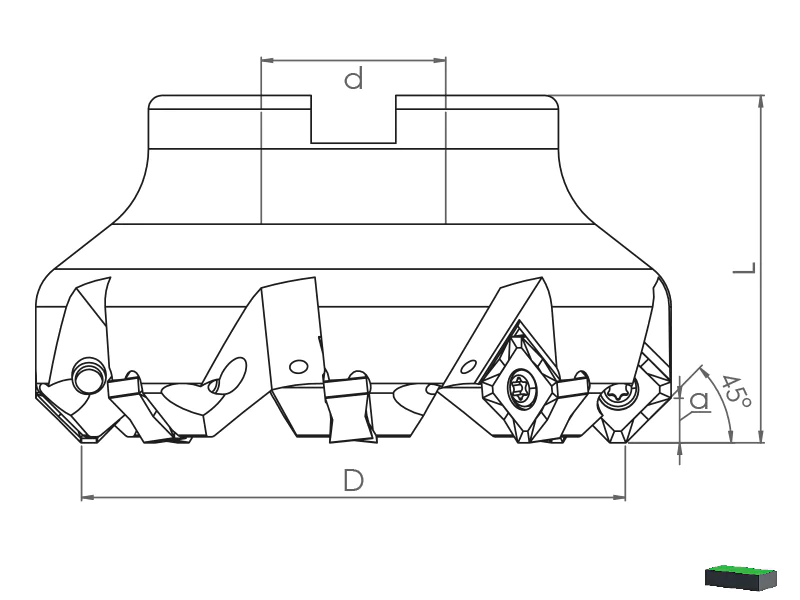

Dimensions (mm)

Master Insert*

TK45 SN..

1206..

D

Z

d

L

a

SM29071

TK45 SN12 D50 A22 Z05-H

50

5

22

40

6

SN.. 1206..

SM14824

TK45 SN12 D50 A22 Z05

-

50

5

22

40

6

SM49628

TK45L SN12 D50 A22 Z05-H*

50

5

22

40

6

SM29064

TK45 SN12 D63 A22 Z07-H

63

7

22

40

6

SM14831

TK45 SN12 D63 A22 Z07

-

63

7

22

40

6

SM49635

TK45L SN12 D63 A22 Z07-H*

63

7

22

40

6

SM29040

TK45 SN12 D80 A27 Z08-H

80

8

27

50

6

SM14848

TK45 SN12 D80 A27 Z08

-

80

8

27

50

6

SM49642

TK45L SN12 D80 A27 Z08-H*

80

8

27

50

6

SM29033

TK45 SN12 D100 A32 Z10-H

100

10

32

50

6

SM14855

TK45 SN12 D100 A32 Z10

-

100

10

32

50

6

SM14862

TK45 SN12 D125 B40 Z11

-

125

11

40

63

6

SM14879

TK45 SN12 D160 C40 Z12

-

160

12

40

63

6

SM25226

TK45 SN12 D200 C60 Z14

-

200

14

60

63

6

SM38424

TK45 SN12 D315 D60 Z20

-

315

20

60

63

6

Size Designation

Master Insert**

Spare Parts

Screw ***

Torx Key

Screw Torque Value

N.m

D50 - D63

SN.. 1206..

SSV

M4x12-9515

STK-T15-9910

4,3

D50 - D315

SSV

M4x14-9516
Product Notes
