45 Milling Tools

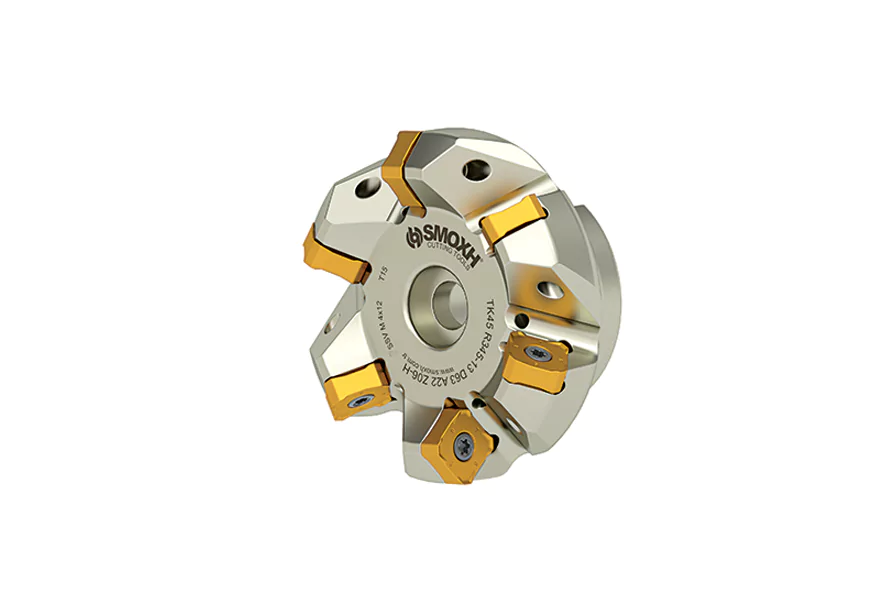

TK45 R345-13..
|
Ordering Code |
Item Designation |

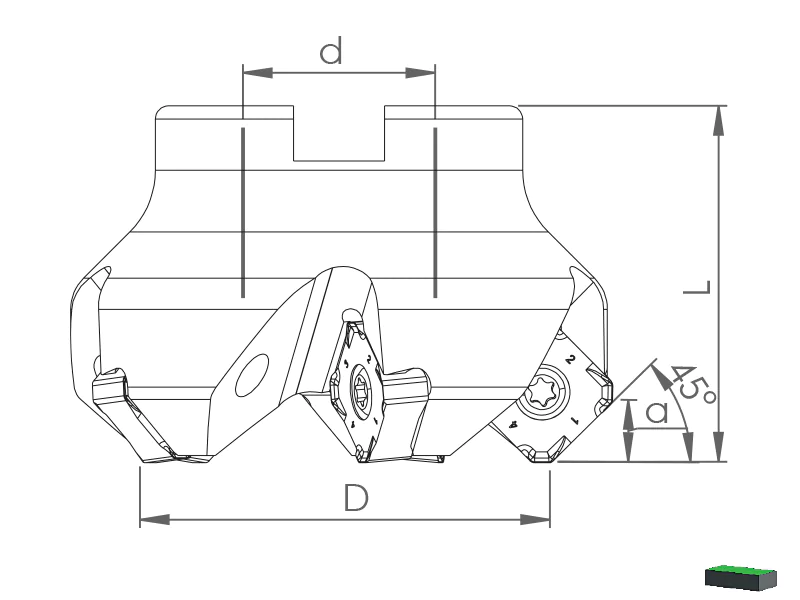

Dimensions (mm) |
Master Insert* |
|||||
|
TK45 R345-13.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM46269 |
TK45 R345-13 D50 A22 Z05-H |
|
50 |
5 |
22 |
40 |
6 |
R345-13.. |
|
SM46276 |
TK45 R345-13 D63 A22 Z06-H |
|
63 |
6 |
22 |
40 |
6 |
|
|
SM46283 |
TK45 R345-13 D80 A27 Z07-H |
|
80 |
7 |
27 |
50 |
6 |
|
|
SM46290 |
TK45 R345-13 D100 A32 Z09-H |
|
100 |
9 |
32 |
50 |
6 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D50 - D100 |
R345-13.. |
SSV M4x12-9515 |
STK-T15-9910 |
4,3 |
