45 Milling Tools

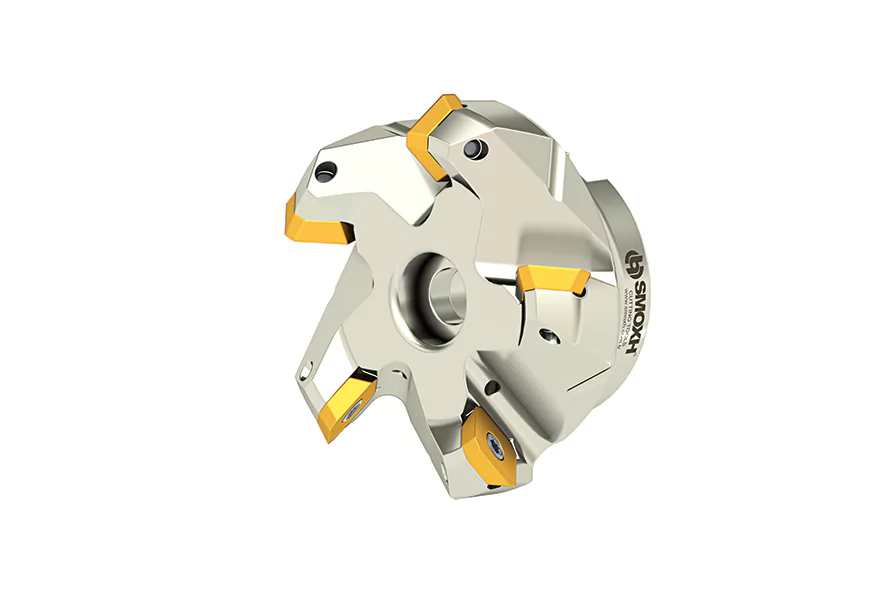

TK45 R245.12T3.. / SE..12T3
|
Ordering Code |
Item Designation |

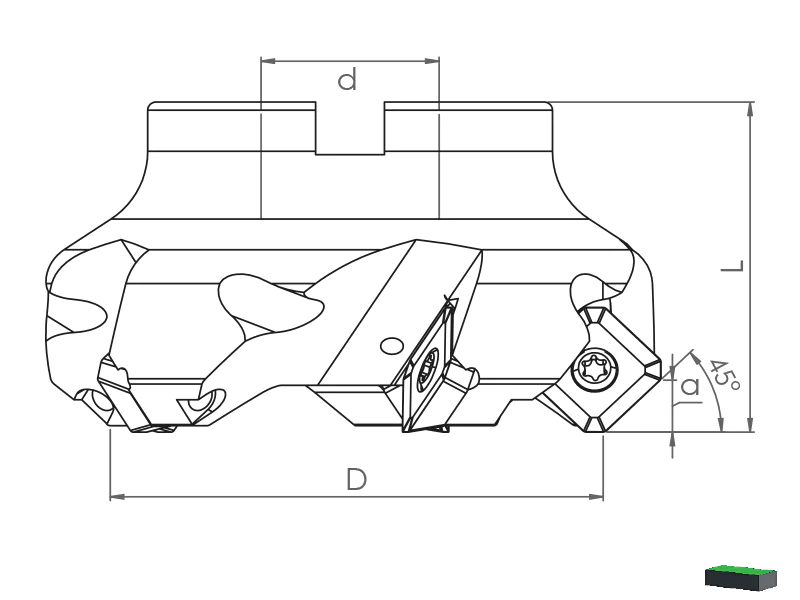

Dimensions (mm) |
Master Insert* |
|||||
|
TK45 R245.12T3.. / SE..12T3 |
|
D |
Z |
d |
L |
a |
|
|
|
SM28982 |
TK45 SE12 D50 A22 Z04-H |
|
50 |
4 |
22 |
40 |
6 |
R245.12T3.. SE..12T3 |
|
SM28975 |
TK45 SE12 D63 A22 Z05-H |
|
63 |
5 |
22 |
40 |
6 |
|
|
SM53106 |
TK45 SE12 D63 A22 Z06-H |
|
63 |
6 |
22 |
40 |
6 |
|
|
SM28968 |
TK45 SE12 D80 A27 Z06-H |
|
80 |
6 |
27 |
50 |
6 |
|
|
SM53113 |
TK45 SE12 D80 A27 Z08-H |
|
80 |
8 |
27 |
50 |
6 |
|
|
SM40182 |
TK45 SE12 D80 A27 Z09-H |
|
80 |
9 |
27 |
50 |
6 |
|
|
SM28951 |
TK45 SE12 D100 A32 Z07-H |
|
100 |
7 |
32 |
50 |
6 |
|
|
SM14800 |
TK45 SE12 D125 B40 Z08 |
- |
125 |
8 |
40 |
63 |
6 |
|
|
SM14817 |
TK45 SE12 D160 C40 Z10 |
- |
160 |
10 |
40 |
63 |
6 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* * |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D50 - D160 |
R245.12T3.. SE..12T3.. |
SSV M3.5x10-9511 |
STK-T15-9910 |
2,9 |
