45 Milling Tools

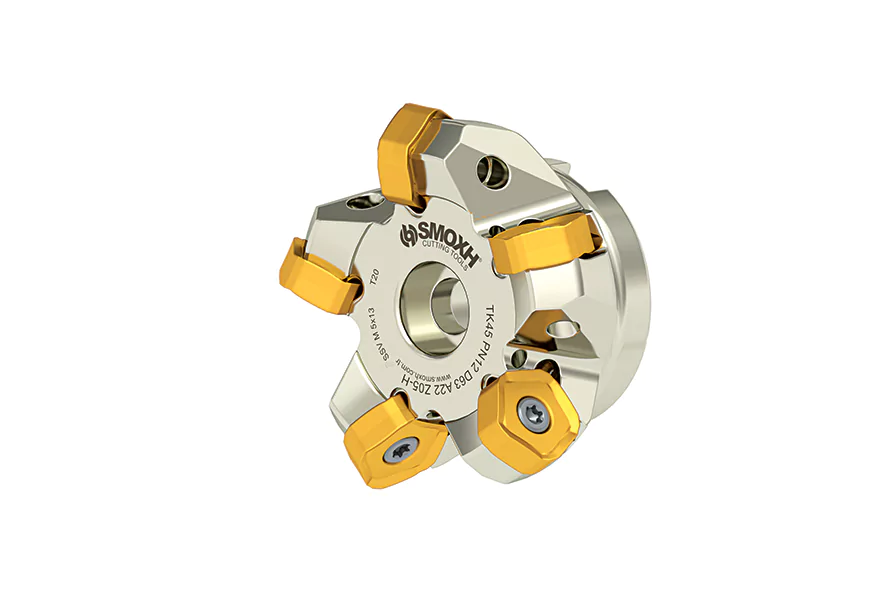

TK45 PNMU 1205..
|
Ordering Code |
Item Designation |

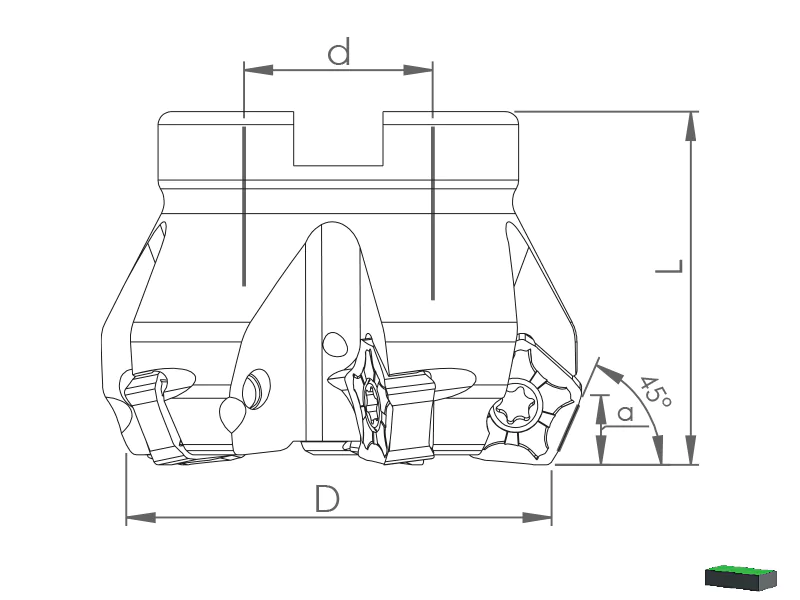

Dimensions (mm) |
Master Insert* |
|||||
|
TK45 PNMU 1205.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM46894 |
TK45 PN12 D63 A22 Z05-H |
|
63 |
5 |
22 |
40 |
6 |
PNMU 1205.. |
|
SM46900 |
TK45 PN12 D80 A27 Z07-H |
|
80 |
7 |
27 |
50 |
6 |
|
|
SM46917 |
TK45 PN12 D100 A32 Z09-H |
|
100 |
9 |
32 |
50 |
6 |
|
|
SM46924 |
TK45 PN12 D125 B40 Z11 |
- |
125 |
11 |
40 |
63 |
6 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D63 - D125 |
PNMU 1205.. |
SSV M5x13-9519 |
STK-T20-9911 |
8,5 |
