45 Milling Tools

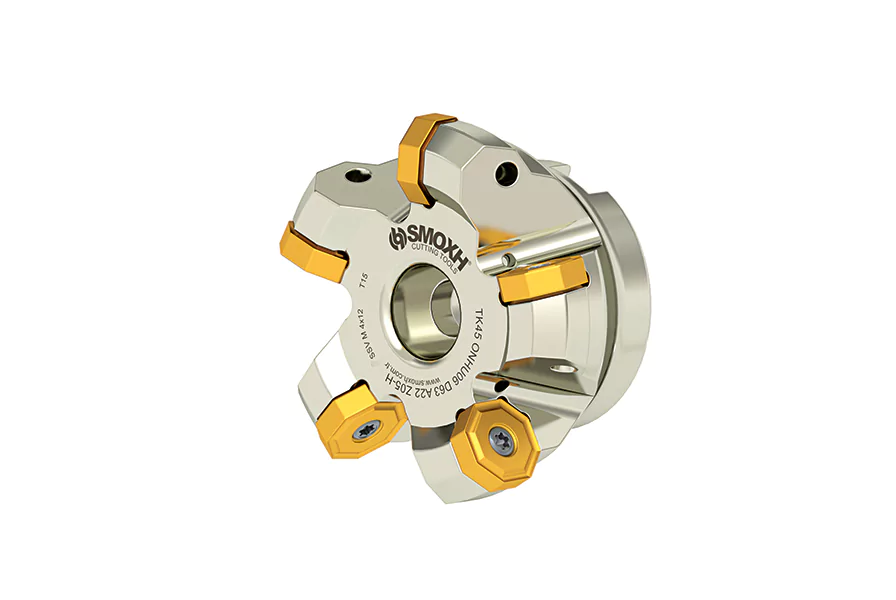

TK45 ONHU 0604.. / 08T6..
|
Ordering Code |
Item Designation |

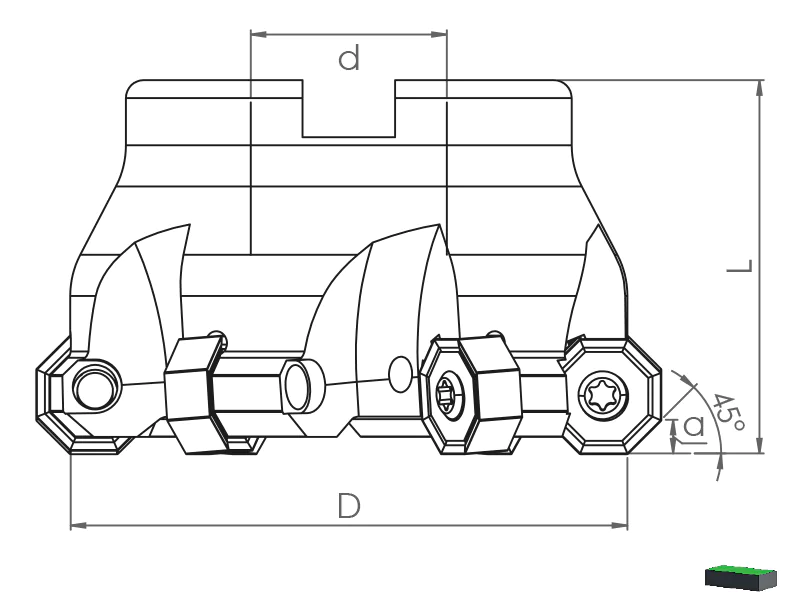

Dimensions (mm) |
Master Insert* |
|||||
|
TK45 ONHU 0604.. / 08T6.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM42865 |
TK45 ONHU06 D63 A22 Z05-H |
|
63 |
5 |
22 |
40 |
4 |
ONHU 0604.. |
|
SM42872 |
TK45 ONHU06 D80 A27 Z06-H |
|
80 |
6 |
27 |
50 |
4 |
|
|
SM42889 |
TK45 ONHU06 D100 A32 Z07-H |
|
100 |
7 |
32 |
50 |
4 |
|
|
SM44913 |
TK45 ONHU08 D63 A22 Z05-H |
|
63 |
5 |
22 |
40 |
5 |
ONHU 08T6.. |
|
SM44920 |
TK45 ONHU08 D80 A27 Z06-H |
|
80 |
6 |
27 |
50 |
5 |
|
|
SM44937 |
TK45 ONHU08 D100 A32 Z07-H |
|
100 |
7 |
32 |
50 |
5 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert** |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D63 - D100 |
ONHU 0604.. |
SSV M4x12-9515 |
STK-T15-9910 |
4,3 |
|
D63 - D100 |
ONHU 08T6.. |
SSV M5x13-9519 |
STK-T20-9911 |
8,5 |
Product Notes
