45 Milling Tools

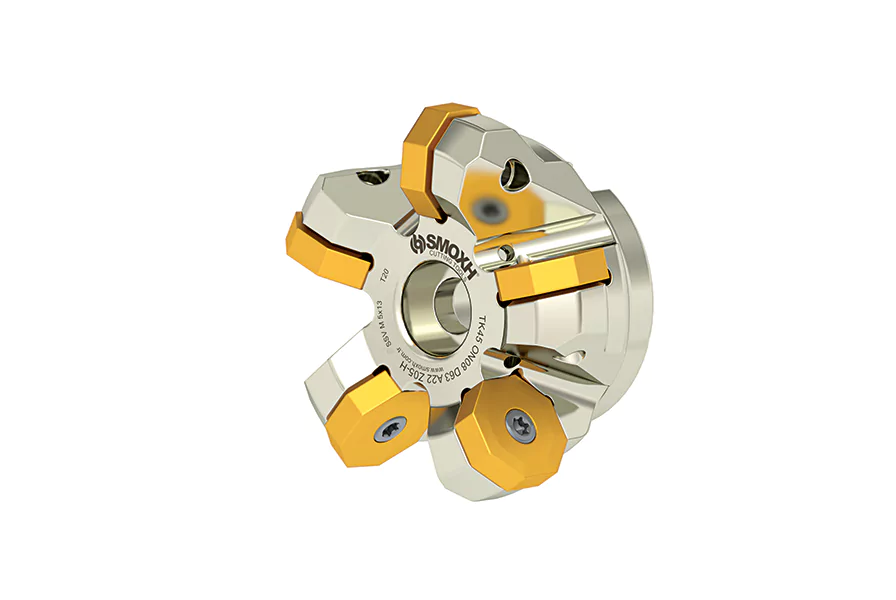

TK45 ON.X 0806..
|
Ordering Code |
Item Designation |

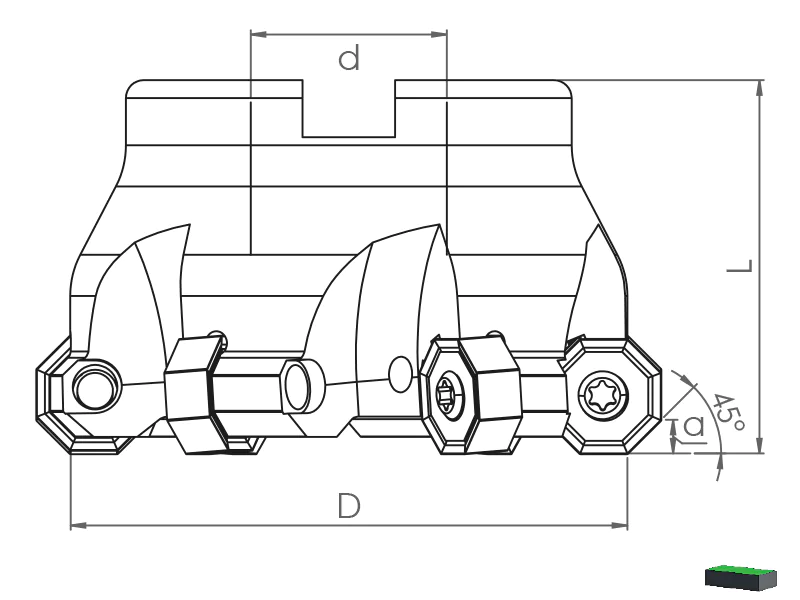

Dimensions (mm) |
Master Insert* |
|||||
|
TK45 ON.X 0806.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM28722 |
TK45 ON08 D63 A22 Z05-H |
|
63 |
5 |
22 |
40 |
5.5 |
ON.X 0806.. |
|
SM28715 |
TK45 ON08 D80 A27 Z06-H |
|
80 |
6 |
27 |
50 |
5.5 |
|
|
SM28708 |
TK45 ON08 D100 A32 Z07-H |
|
100 |
7 |
32 |
50 |
5.5 |
|
|
SM14695 |
TK45 ON08 D125 B40 Z08 |
- |
125 |
8 |
40 |
63 |
5.5 |
|
|
SM14718 |
TK45 ON08 D160 C40 Z10 |
- |
160 |
10 |
40 |
63 |
5.5 |
|
|
SM25219 |
TK45 ON08 D200 C60 Z12 |
- |
200 |
12 |
60 |
63 |
5.5 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D63 - D200 |
ON.X 0606.. |
SSV M5x13-9519 |
STK-T20-9911 |
8,5 |
