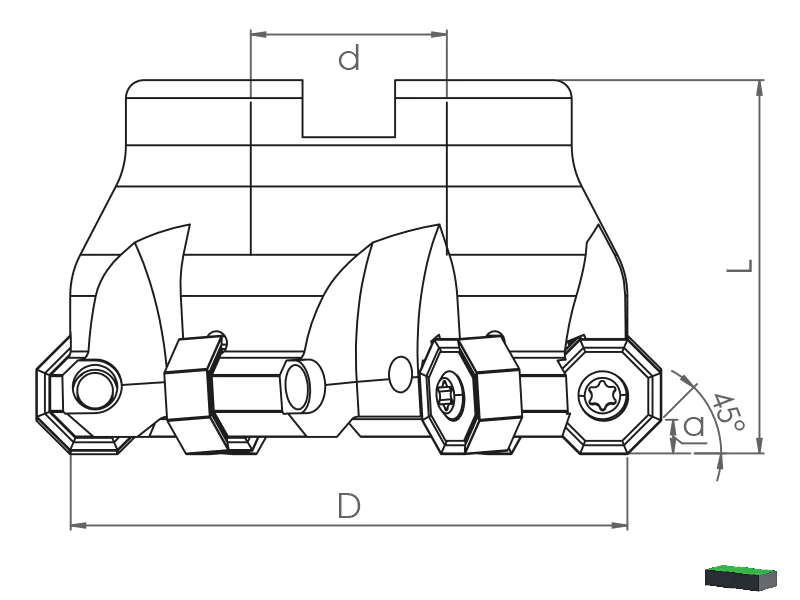

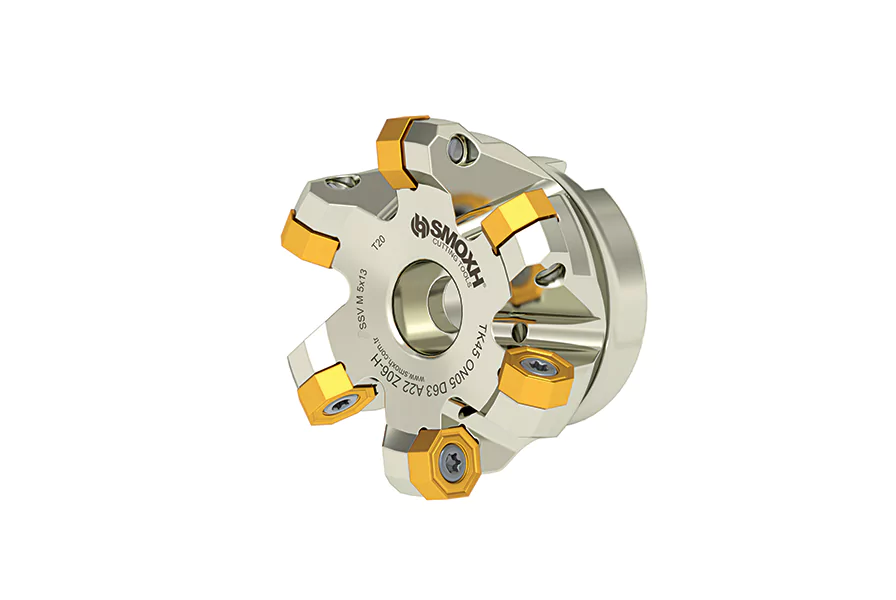

45 Milling Tools
TK45 ON.X 0505..
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
|||||
|
TK45 ON.X 0505.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM28760 |
TK45 ON05 D50 A22 Z05-H |
|
50 |
5 |
22 |
40 |
3.5 |
ON.X 0505.. |
|
SM28753 |
TK45 ON05 D63 A22 Z06-H |
|
63 |
6 |
22 |
40 |
3.5 |
|
|
SM28746 |
TK45 ON05 D80 A27 Z07-H |
|
80 |
7 |
27 |
50 |
3.5 |
|
|
SM28739 |
TK45 ON05 D100 A32 Z08-H |
|
63 |
8 |
22 |
40 |
3.5 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D50 - D100 |
ON.X 0505.. |
SSV M5x13-9519 |
STK-T20-9911 |
8,5 |
