45 Milling Tools

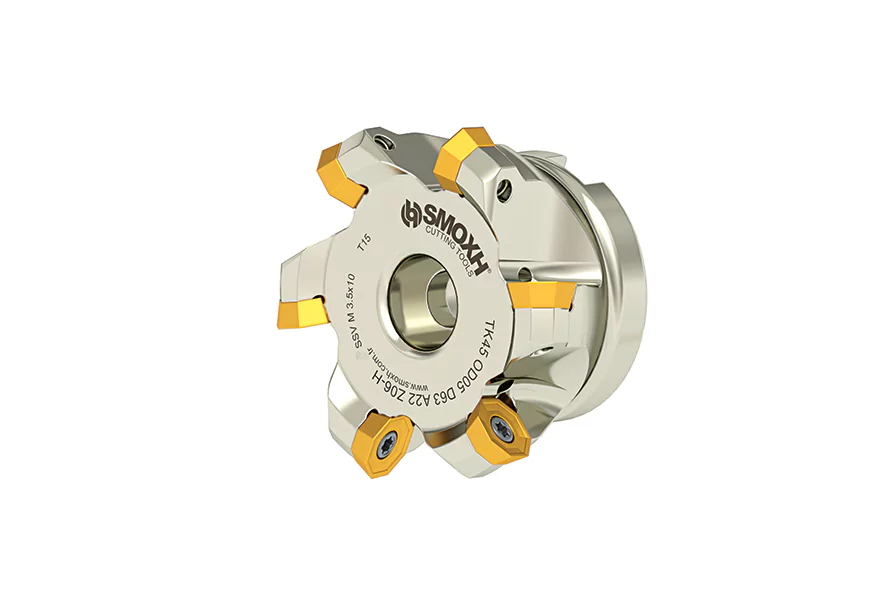

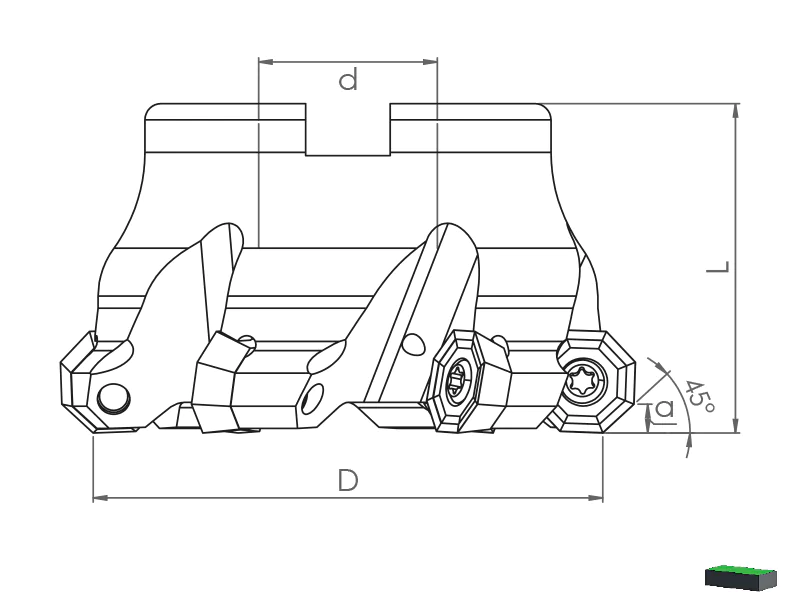

TK45 OD.. 0504..
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
|||||
|
TK45 OD.. 0504.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM28814 |
TK45 OD05 D40 A16 Z04-H |
|
40 |
4 |
16 |
40 |
3.5 |
OD.. 0504.. |
|
SM28807 |
TK45 OD05 D50 A22 Z05-H |
|
50 |
5 |
22 |
40 |
3.5 |
|
|
SM28791 |
TK45 OD05 D63 A22 Z06-H |
|
63 |
6 |
22 |
40 |
3.5 |
|
|
SM28784 |
TK45 OD05 D80 A27 Z07-H |
|
80 |
7 |
27 |
50 |
3.5 |
|
|
SM28777 |
TK45 OD05 D100 A32 Z08-H |
|
100 |
8 |
32 |
50 |
3.5 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D40 - D100 |
OD.. 0504.. |
SSV M3.5x10-9511 |
STK-T15-9910 |
2,9 |
