45 Milling Tools

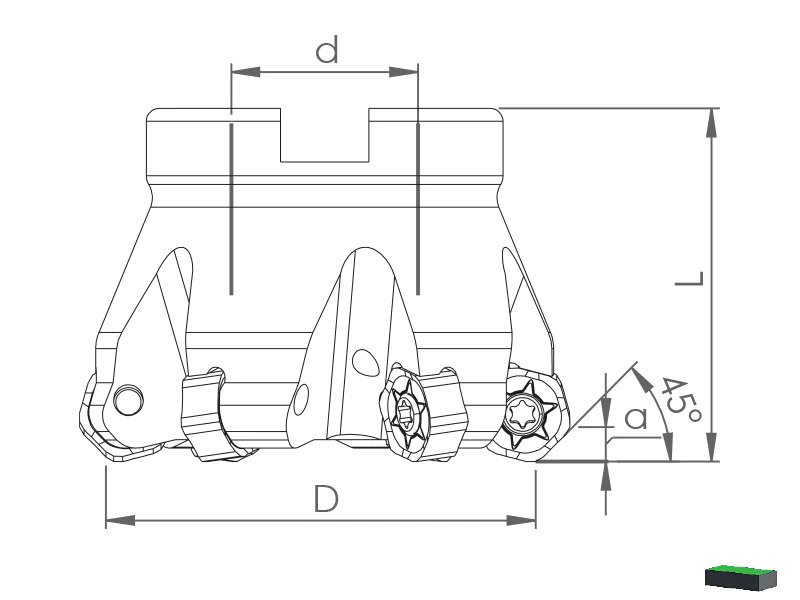

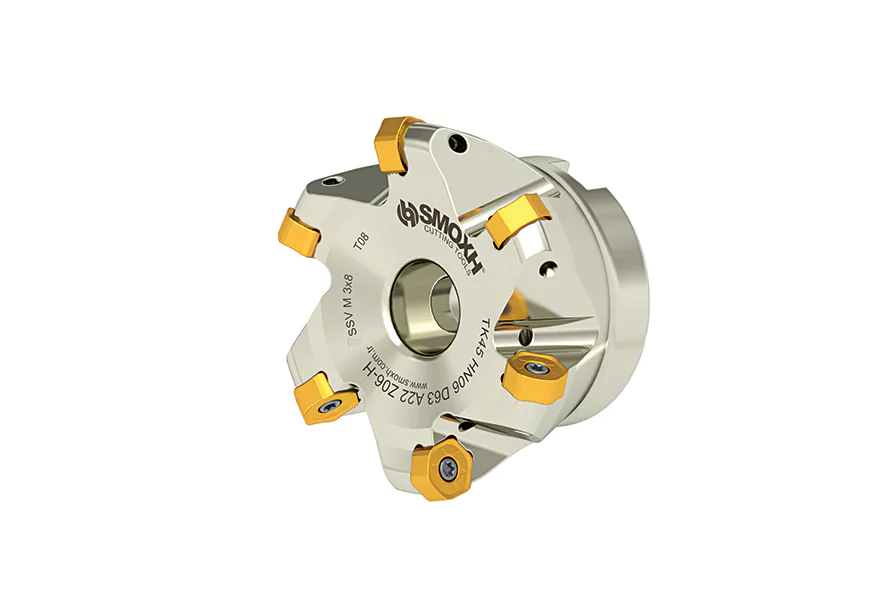

TK45 HNGX 0604.. / 0906..
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
|||||
|
TK45 HNGX 0604.. / 0906.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM42742 |
TK45 HN06 D50 A22 Z05-H |
|
50 |
5 |
22 |
40 |
3 |
HNGX 0604.. |
|
SM40519 |
TK45 HN06 D63 A22 Z06-H |
|
63 |
6 |
22 |
40 |
3 |
|
|
SM40526 |
TK45 HN06 D80 A27 Z07-H |
|
80 |
7 |
27 |
50 |
3 |
|
|
SM40533 |
TK45 HN06 D100 A32 Z08-H |
|
100 |
8 |
32 |
50 |
3 |
|
|
SM42896 |
TK45 HN09 D63 A22 Z05-H |
|
63 |
5 |
22 |
40 |
5 |
HNGX 0906.. |
|
SM40540 |
TK45 HN09 D80 A27 Z06-H |
|
80 |
6 |
27 |
50 |
5 |
|
|
SM40557 |
TK45 HN09 D100 A32 Z08-H |
|
100 |
8 |
32 |
50 |
5 |
|
|
SM40564 |
TK45 HN09 D125 B40 Z10 |
- |
125 |
10 |
40 |
63 |
5 |
|
|
SM40571 |
TK45 HN09 D160 C40 Z12 |
- |
160 |
12 |
40 |
63 |
5 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D50 - D100 |
HNGX 0604.. |
SSV M3x8-9508 |
STK-T08-9908 |
1,9 |
|
D63 - D160 |
HNGX 0906.. |
SSV M4x12-9515 |
STK-T15-9910 |
4,3 |
