45 Milling Tools

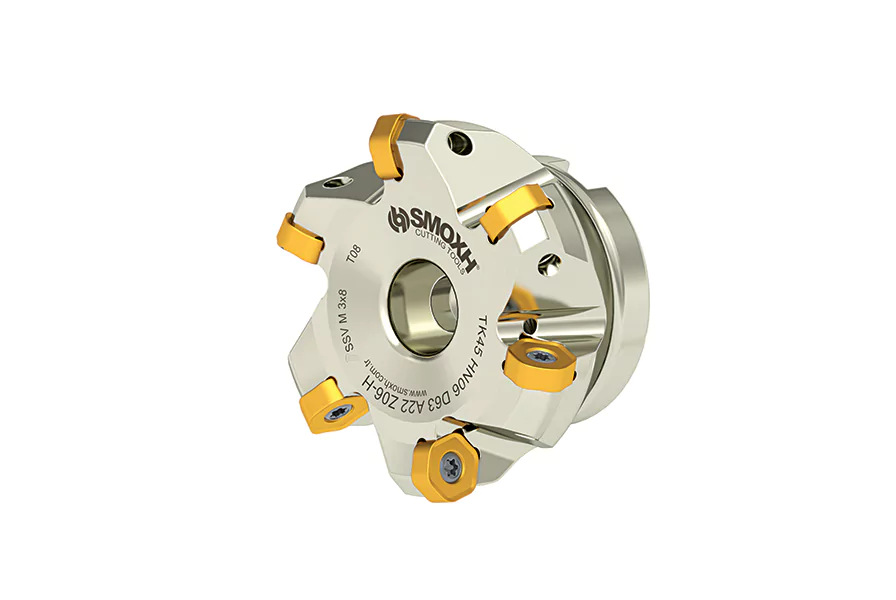

TK45 HN.J 0604.. / 0704.. / 0905..
|
Ordering Code |
Item Designation |

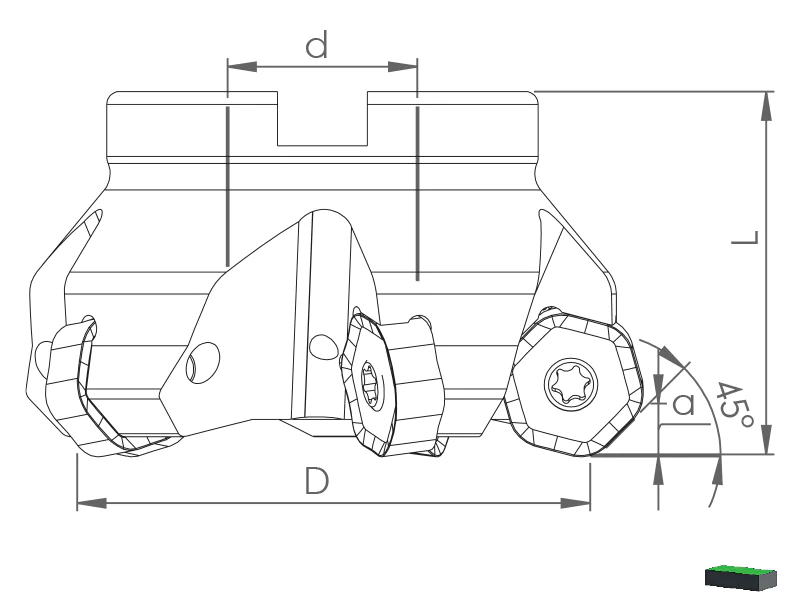

Dimensions (mm) |
Master Insert* |
|||||
|
TK45 HN.J 0604.. / 0704.. / 0905.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM40588 |
TK45 HN0604 D50 A22 Z05-H |
|
50 |
5 |
22 |
40 |
3.23 |
HN.J 0604..* |
|
SM42841 |
TK45 HN0604 D63 A22 Z06-H |
|
63 |
6 |
22 |
40 |
3.23 |
|
|
SM42858 |
TK45 HN0604 D80 A27 Z07-H |
|
80 |
7 |
27 |
50 |
3.23 |
|
|
SM44043 |
TK45 HN0704 D50 A22 Z05-H |
|
50 |
5 |
22 |
40 |
3.5 |
HN.J 0704..** |
|
SM44050 |
TK45 HN0704 D63 A22 Z06-H |
|
63 |
6 |
22 |
40 |
3.5 |
|
|
SM44067 |
TK45 HN0704 D80 A27 Z08-H |
|
80 |
8 |
27 |
50 |
3.5 |
|
|
SM42933 |
TK45 HN0905 D50 A22 Z04-H |
|
50 |
4 |
22 |
40 |
4.5 |
HN.J 0905..*** |
|
SM42940 |
TK45 HN0905 D63 A22 Z05-H |
|
63 |
5 |
22 |
40 |
4.5 |
|
|
SM42957 |
TK45 HN0905 D80 A27 Z06-H |
|
80 |
6 |
27 |
50 |
4.5 |
|
|
SM42964 |
TK45 HN0905 D100 A32 Z08-H |
|
100 |
8 |
32 |
50 |
4.5 |
|
|
SM42971 |
TK45 HN0905 D125 B40 Z10 |
- |
125 |
10 |
40 |
63 |
4.5 |
|
|
SM42988 |
TK45 HN0905 D160 C40 Z12 |
- |
160 |
12 |
40 |
63 |
4.5 |
|
File Request Form
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D50 - D80 |
HN.J 0604..* |
SSV M4x12-9515 |
STK-T15-9910 |
4,3 |
|
D50 - D80 |
HN.J 0704..** |
SSV M4x9x5-9528 |
||
|
D50 - D160 |
HN.J 0905..*** |
SSV M4x12-9515 |
||
