90 Milling Tools

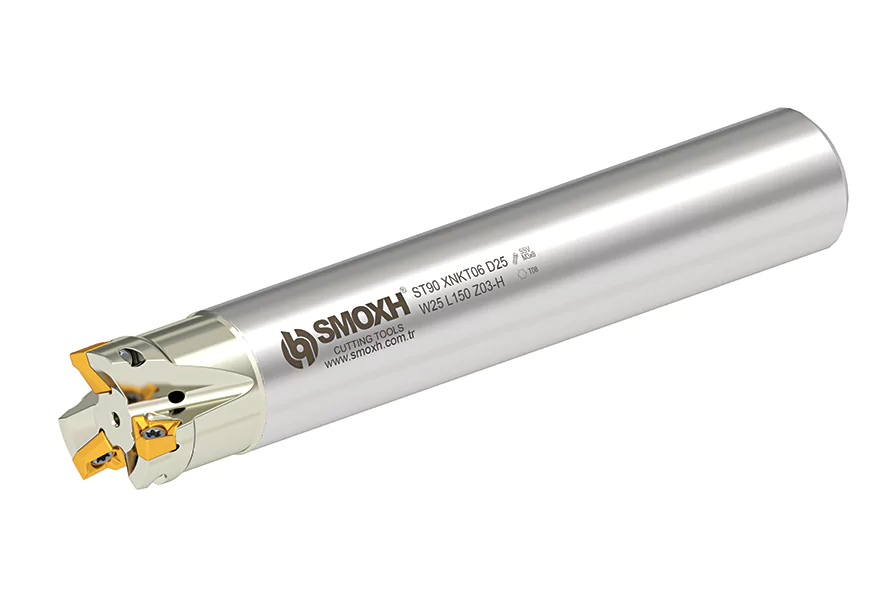

ST90 XNKT 0604.. / 0805..

ST90 XNKT 0604.. / 0805..
ST90 XNKT 0604.. / 0805..

Ordering Code

Item Designation

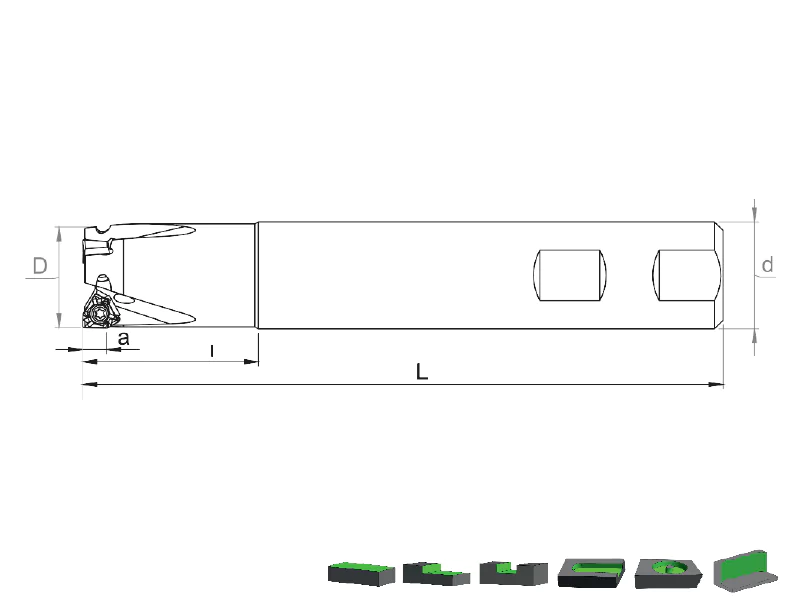

Dimensions (mm)

Master Insert*

ST90 XNKT

0604.. / 0805..

D

d

Z

L

l

a

ST90 XNKT06 D20 W20 L150 Z02-H

20

20

2

150

40

5.5

XNKT 0604..

ST90 XNKT06 D21 W20 L150 Z02-H

21

20

2

150

30

5.5

ST90 XNKT06 D21 C20 L200 Z02

-

21

20

2

200

30

5.5

ST90 XNKT06 D22 W20 L150 Z02-H

22

20

2

150

30

5.5

ST90 XNKT06 D25 W25 L150 Z03-H

25

25

3

150

40

5.5

ST90 XNKT06 D26 W25 L150 Z03-H

26

25

3

150

30

5.5

ST90 XNKT06 D26 C25 L200 Z03

-

26

25

3

200

30

5.5

ST90 XNKT06 D32 W32 L150 Z04-H

32

32

4

150

40

5.5

ST90 XNKT06 D33 W32 L150 Z04-H

33

32

4

150

30

5.5

ST90 XNKT06 D33 C32 L200 Z04

-

33

32

4

200

30

5.5

ST90 XNKT08 D30 W25 L150 Z02

-

30

25

2

150

40

8

XNKT 08..

ST90 XNKT08 D32 W32 L150 Z02

-

32

32

2

150

40

8

ST90 XNKT08 D35 W32 L150 Z03

-

35

32

3

150

30

8

ST90 XNKT08 D40 W32 L150 Z04

-

40

32

4

150

30

8

Size Designation

Master Insert*

Spare Parts

Screw

Torx Key

Screw Torque Value

N.m

D20 - D26

XNKT 0604..

SSV

M3x6-9507

STK-T08-9908

1,9

D32 - D33

SSV

M3x8-9508

D30 - D40

XNKT 08..

SSV

M4x9x5-9528

STK-T15-9910

4,3
Product Notes
