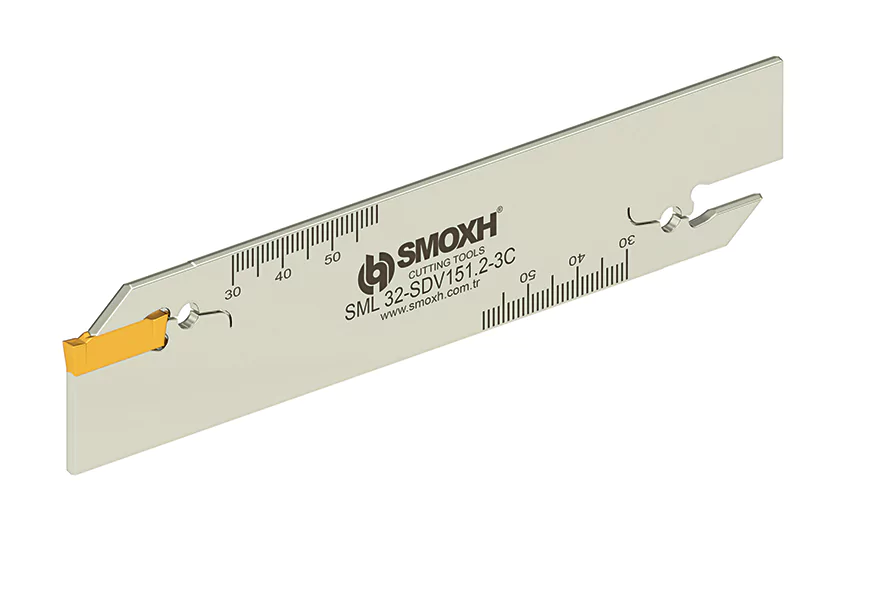

SML-Blade SDV - 123

SML-Blade SDV - 123
SML-Blade SDV - 123

Ordering Code

Item Designation

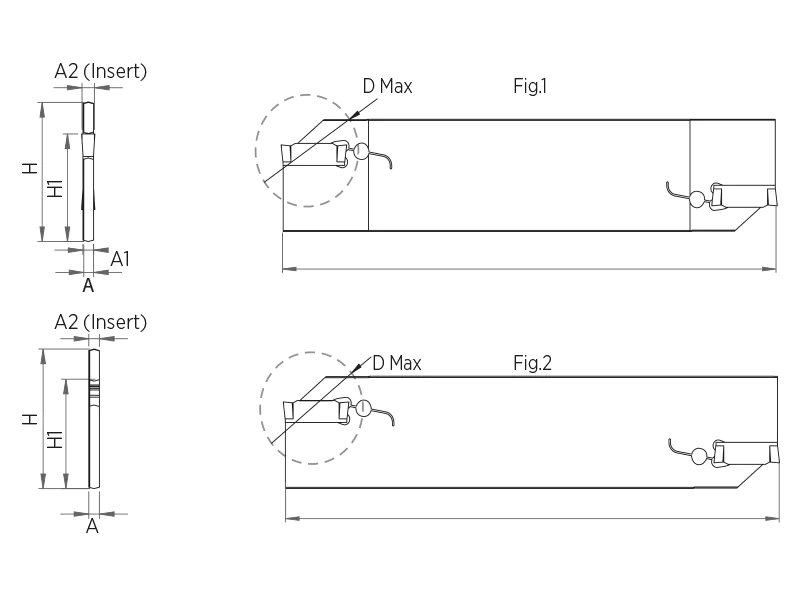

Dimensions (mm)

Master

Insert*

SML-Blade

SDV - 123

H

H1

A

A1

A2

(Insert)

L

D

max

Fig.

SM54776

SML 32-SDV123-2C

32

25

2.4

1.6

2

150

39

1

123-2C

SM54783

SML 32-SDV123-3C

32

25

2.4

-

3

150

39

2

123-3C

SM54790

SML 32-SDV123-4C

32

25

3.2

-

4

150

39

2

123-4C

Descriptions

Master Insert*

Spare Parts

Blade Key

32

123 (2C- 4C)

SBK-01-9901
Product Notes
