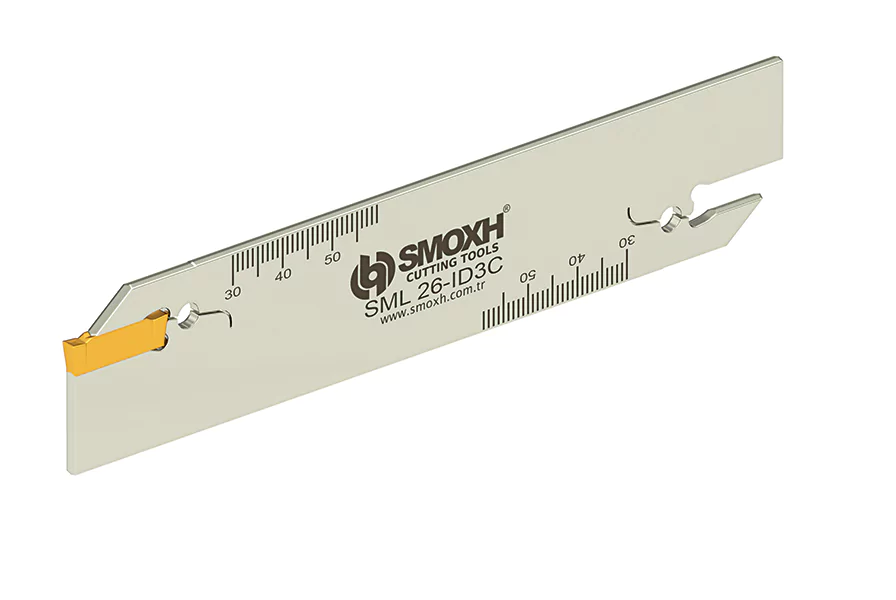

SML-Blade DGN

SML-Blade DGN
SML-Blade DGN

Ordering Code

Item Designation

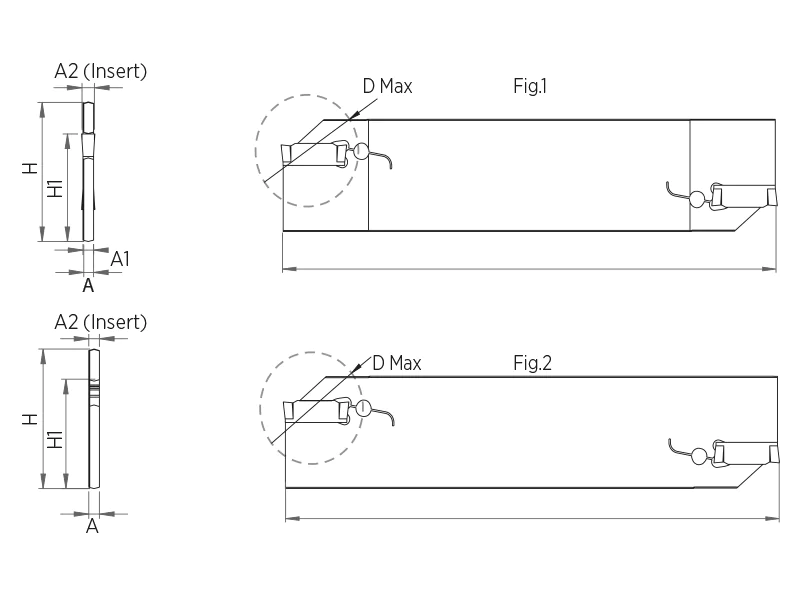

Dimensions (mm)

Master

Insert*

SML-Blade

DGN

H

H1

A

A1

A2

(Insert)

L

D

max

Fig.

SM54714

SML 26-ID2C

26

21.4

1.6

-

1.9-2.5

110

39

2

DGN. 2C

SM54721

SML 32-ID2C

32

25

2.4

1.8

1.9-2.5

150

39

1

SM54738

SML 26-ID3C

26

21.4

2.4

-

3-3.18

110

39

2

DGN. 3C

SM54745

SML 32-ID3C

32

25

2.4

-

3-3.18

150

39

2

SM54752

SML 26-IG4C

26

21.4

3.2

-

4

110

80

2

GRIP 4C

SM54769

SML 32-IG4C

32

25

3.2

-

4

150

100

2

Descriptions

Master Insert*

Spare Parts

Blade Key

26 - 32

DGN / GRIP (2C-4C)

SBK-01-9901
