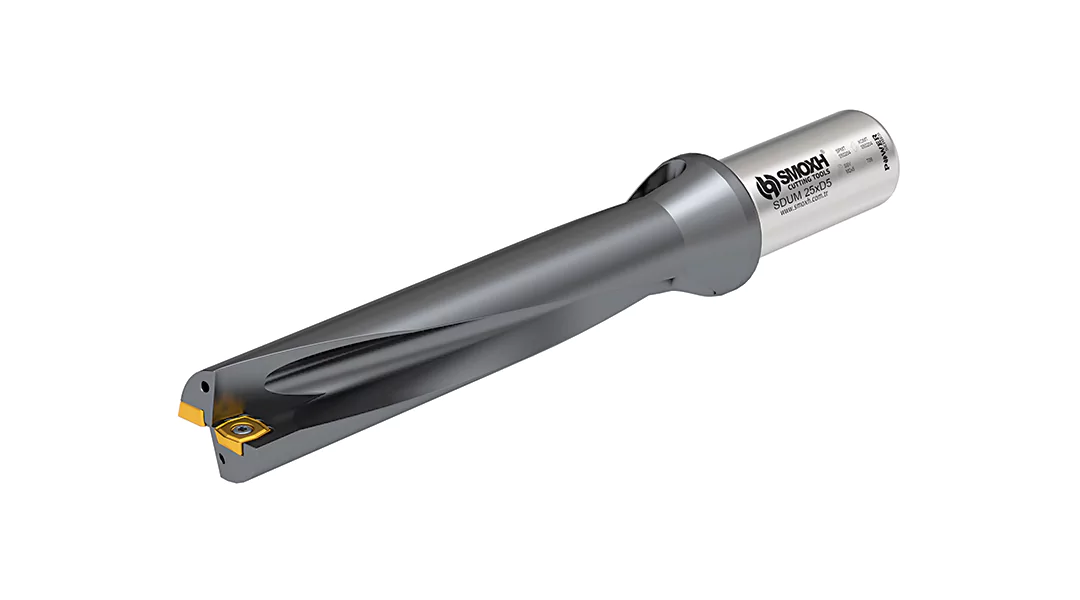

SDUM Dx5 - SPMT/XOMT (PD) SPMT 040204 / 050204 / 060205 / 07T208 XOMT 040204 / 050204 / 060204 / 07T205
--SPMT-040204---050204---060205---07T208-XOMT-040204---050204---060204---07T205-teknik-resim.webp)
--SPMT-040204---050204---060205---07T208-XOMT-040204---050204---060204---07T205.webp)
|
Ordering Code |
Item Designation |

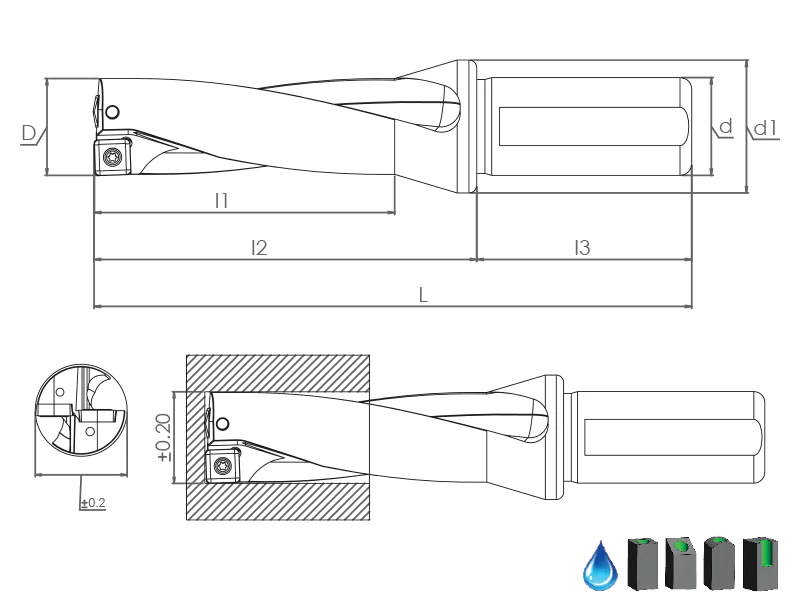

Dimensions (mm) |
Master Insert* |
|||||||
|
SDUM Dx5 - SPMT/XOMT (PD) SPMT 040204 / 050204 / 060205 / 07T208 XOMT 040204 / 050204 / 060204 / 07T205 |
|
D |
d |
d1 |
L |
l1 |
l2 |
l3 |
|
|
|
SM30787 |
SDUM 13XD5 SP-XO04 |
|
13 |
20 |
25 |
130 |
65 |
80 |
50 |
SPMT(PD)040204 XOMT(PD)040204 |
|
SM30794 |
SDUM 14XD5 SP-XO05 |
|
14 |
20 |
25 |
135 |
70 |
85 |
50 |
SPMT(PD)050204 XOMT(PD)050204 |
|
SM30800 |
SDUM 15XD5 SP-XO05 |
|
15 |
20 |
25 |
140 |
75 |
90 |
50 |
|
|
SM30817 |
SDUM 16XD5 SP-XO05 |
|
16 |
25 |
34 |
155 |
80 |
100 |
56 |
|
|
SM30824 |
SDUM 17XD5 SP-XO06 |
|
17 |
25 |
34 |
160 |
85 |
105 |
56 |
SPMT(PD) 060205 XOMT(PD)060204 |
|
SM30831 |
SDUM 18XD5 SP-XO06 |
|
18 |
25 |
34 |
165 |
90 |
111 |
56 |
|
|
SM30848 |
SDUM 19XD5 SP-XO06 |
|
19 |
25 |
34 |
170 |
95 |
116 |
56 |
|
|
SM30855 |
SDUM 20XD5 SP-XO07 |
|
20 |
25 |
34 |
175 |
100 |
120 |
56 |
SPMT(PD) 07T208 XOMT(PD) 07T025 |
|
SM30862 |
SDUM 21XD5 SP-XO07 |
|
21 |
25 |
34 |
180 |
105 |
124 |
56 |
|
|
SM30879 |
SDUM 22XD5 SP-XO07 |
|
22 |
25 |
34 |
185 |
110 |
129 |
56 |
|
|
SM30886 |
SDUM 23XD5 SP-XO07 |
|
23 |
25 |
34 |
190 |
115 |
135 |
56 |
|
|
SM30893 |
SDUM 24XD5 SP-XO09 |
|
24 |
25 |
34 |
195 |
120 |
140 |
56 |
SPMT(PD) 090308 XOMT(PD)090305 |
|
SM30909 |
SDUM 25XD5 SP-XO09 |
|
25 |
25 |
34 |
200 |
125 |
144 |
56 |
|
|
SM30916 |
SDUM 26XD5 SP-XO09 |
|
26 |
25 |
34 |
205 |
130 |
149 |
56 |
|
|
SM30923 |
SDUM 27XD5 SP-XO09 |
|
27 |
25 |
34 |
210 |
135 |
155 |
56 |
|
|
SM30930 |
SDUM 28XD5 SP-XO09 |
|
28 |
25 |
34 |
215 |
140 |
160 |
56 |
|
|
SM30947 |
SDUM 29XD5 SP-XO09 |
|
29 |
25 |
34 |
220 |
145 |
165 |
56 |
|
|
SM50440 |
SDUM 30XD5 SP-XO11 |
|
30 |
32 |
44 |
231 |
150 |
170 |
60 |
SPMT(PD) 11T308 XOMT(PD) 11T306 |
File Request Form
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D13 |
SPMT(PD)040204 XOMT(PD) 040204 |
SSV M2x4-9521 |
STK-T06-9906 |
0,6 |
|
D14 - D16 |
SPMT(PD)050204 XOMT(PD) 050204 |
|||
|
D17 - D19 |
SPMT(PD) 060205 XOMT(PD) 060204 |
SSV M2.2x5-9503 |
0,85 |
|
|
D20 - D23 |
SPMT(PD) 07T208 XOMT(PD) 07T205 |
SSV M2.5x6-9505 |
STK-T08-9908 |
1,2 |
|
D24 - D29 |
SPMT(PD) 090308 XOMT(PD) 090305 |
SSV M3x8-9508 |
STK-T08-9908 |
1,9 |
|
D30 |
SPMT(PD) 11T308 XOMT(PD) 11T306 |
SSV M3.5x10-9511 |
STK-T15-9910 |
2,9 |
