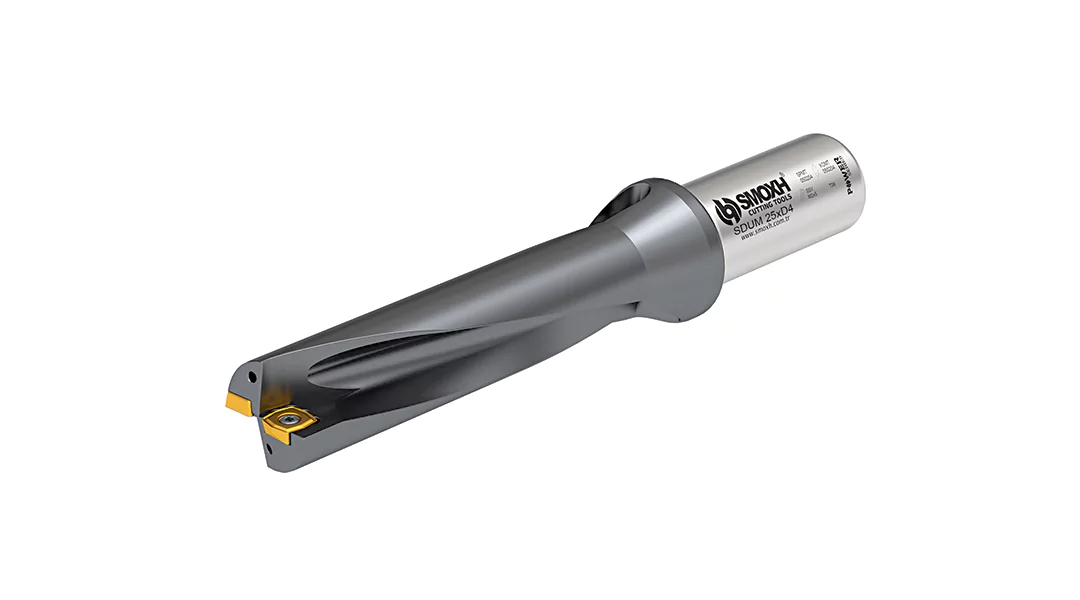

SDUM Dx4 - SPMT/XOMT (PD) SPMT 090308 / 11T308 XOMT 090305 / 11T306 U-DRILL
--SPMT-090308---11T308-XOMT-090305---11T306-U-DRILL-teknik-resim.webp)
--SPMT-090308---11T308-XOMT-090305---11T306-U-DRILL.webp)
|
Ordering Code |
Item Designation |

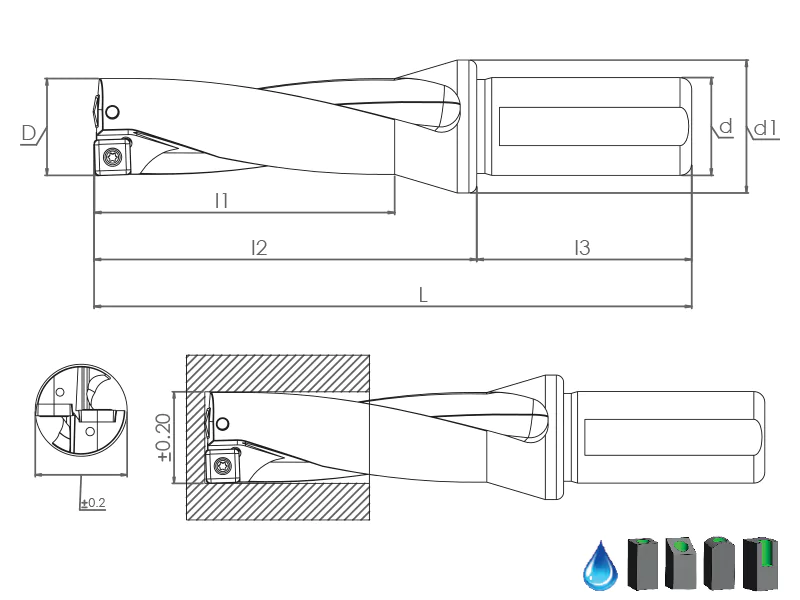

Dimensions (mm) |
Master Insert* |
|||||||
|
SDUM Dx4 - SPMT/XOMT (PD) SPMT 090308 / 11T308 XOMT 090305 / 11T306 U-DRILL |
|
D |
d |
d1 |
L |
l1 |
l2 |
l3 |
|
|
|
SM30640 |
SDUM 24XD4 SP-XO09 |
|
24 |
25 |
34 |
178 |
96 |
122 |
56 |
SPMT(PD) 090308 XOMT(PD)090305 |
|
SM30657 |
SDUM 24.5XD4 SP-XO09 |
|
24.5 |
25 |
34 |
183 |
98 |
122 |
56 |
|
|
SM30664 |
SDUM 25XD4 SP-XO09 |
|
25 |
25 |
34 |
183 |
100 |
127 |
56 |
|
|
SM30671 |
SDUM 25.5XD4 SP-XO09 |
|
25.5 |
25 |
34 |
187 |
102 |
127 |
56 |
|
|
SM30688 |
SDUM 26XD4 SP-XO09 |
|
26 |
25 |
34 |
187 |
104 |
131 |
56 |
|
|
SM30695 |
SDUM 26.5XD4 SP-XO09 |
|
26.5 |
25 |
34 |
191 |
106 |
131 |
56 |
|
|
SM30701 |
SDUM 27XD4 SP-XO09 |
|
27 |
25 |
34 |
191 |
108 |
135 |
56 |
|
|
SM30718 |
SDUM 27.5XD4 SP-XO09 |
|
27.5 |
25 |
34 |
196 |
110 |
135 |
56 |
|
|
SM30725 |
SDUM 28XD4 SP-XO09 |
|
28 |
25 |
34 |
196 |
112 |
140 |
56 |
|
|
SM30756 |
SDUM 28.5XD4 SP-XO09 |
|
28.5 |
25 |
34 |
200 |
114 |
140 |
56 |
|
|
SM30749 |
SDUM 29XD4 SP-XO09 |
|
29 |
25 |
34 |
200 |
116 |
144 |
56 |
|
|
SM30763 |
SDUM 29.5XD4 SP-XO09 |
|
29.5 |
25 |
34 |
202 |
118 |
144 |
56 |
|
|
SM30770 |
SDUM 30XD4 SP-XO11 |
|
30 |
32 |
44 |
201 |
120 |
141 |
60 |
SPMT(PD) 11T308 XOMT(PD) 11T306 |
File Request Form
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D24 - D29.5 |
SPMT(PD) 090308 XOMT(PD) 090305 |
SSV M3x8-9508 |
STK-T08-9908 |
1,9 |
|
D30 |
SPMT(PD) 11T308 XOMT(PD) 11T306 |
SSV M3.5x10-9511 |
STK-T15-9910 |
2,9 |
