SDUM Dx4 - SPMT/XOMT (PD) SPMT 040204 / 050204 / 060205 / 07T208 XOMT 040204 / 050204 / 060204 / 07T205 U-DRILL

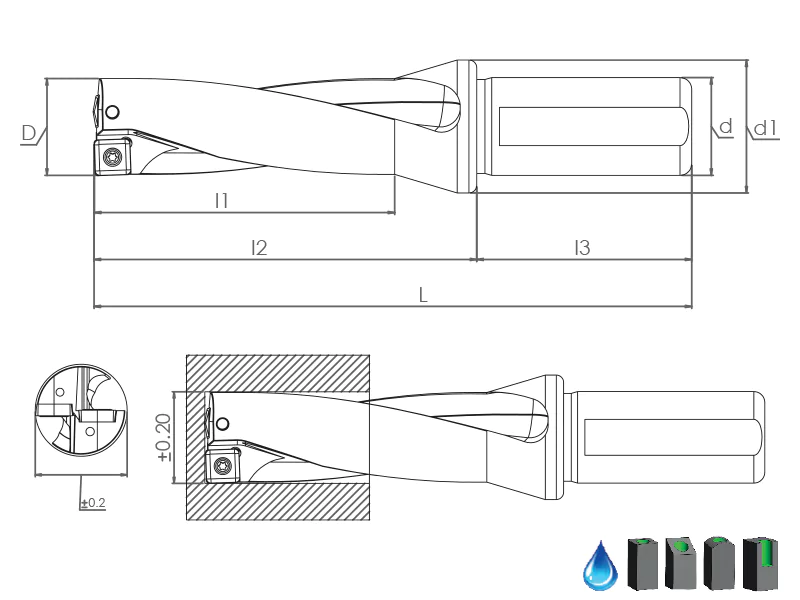

--SPMT-040204---050204---060205---07T208-XOMT-040204---050204---060204---07T205-U-DRILL-teknik-resim.webp)
--SPMT-040204---050204---060205---07T208-XOMT-040204---050204---060204---07T205-U-DRILL.webp)
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
|||||||
|
SDUM Dx4 - SPMT/XOMT (PD) SPMT 040204 / 050204 / 060205 / 07T208 XOMT 040204 / 050204 / 060204 / 07T205 U-DRILL |
|
D |
d |
d1 |
L |
l1 |
l2 |
l3 |
|
|
|
SM38905 |
SDUM 12.5XD4 SP-XO04 |
|
12.5 |
20 |
25 |
120 |
52 |
70 |
50 |
SPMT(PD)040204 XOMT(PD)040204 |
|
SM30411 |
SDUM 13XD4 SP-XO04 |
|
13 |
20 |
25 |
120 |
52 |
70 |
50 |
|
|
SM38912 |
SDUM 13.5XD4 SP-XO04 |
|
13.5 |
20 |
25 |
120 |
52 |
70 |
50 |
|
|
SM30435 |
SDUM 14XD4 SP-XO05 |
|
14 |
20 |
25 |
124 |
56 |
73 |
50 |
SPMT(PD)050204 XOMT(PD)050204 |
|
SM38882 |
SDUM 14.5XD4 SP-XO05 |
|
14.5 |
20 |
25 |
124 |
56 |
78 |
50 |
|
|
SM30459 |
SDUM 15XD4 SP-XO05 |
|
15 |
20 |
25 |
128 |
60 |
78 |
50 |
|
|
SM30466 |
SDUM 15.5XD4 SP-XO05 |
|
15.5 |
20 |
25 |
128 |
60 |
85 |
50 |
|
|
SM30473 |
SDUM 16XD4 SP-XO05 |
|
16 |
25 |
34 |
140 |
64 |
84 |
56 |
|
|
SM38790 |
SDUM 16.5XD4 SP-XO06 |
|
16.5 |
25 |
34 |
144 |
66 |
84 |
56 |
SPMT(PD) 060205 XOMT(PD)060204 |
|
SM30497 |
SDUM 17XD4 SP-XO06 |
|
17 |
25 |
34 |
144 |
68 |
88 |
56 |
|
|
SM30527 |
SDUM 17.5XD4 SP-XO06 |
|
17.5 |
25 |
34 |
149 |
70 |
88 |
56 |
|
|
SM30534 |
SDUM 18XD4 SP-XO06 |
|
18 |
25 |
34 |
149 |
72 |
93 |
56 |
|
|
SM30541 |
SDUM 18.5XD4 SP-XO06 |
|
18.5 |
25 |
34 |
153 |
74 |
93 |
56 |
|
|
SM30558 |
SDUM 19XD4 SP-XO06 |
|
19 |
25 |
34 |
153 |
76 |
97 |
56 |
|
|
SM30565 |
SDUM 19.5XD4 SP-XO06 |
|
19.5 |
25 |
34 |
159 |
78 |
97 |
56 |
|
|
SM30572 |
SDUM 20XD4 SP-XO07 |
|
20 |
25 |
34 |
159 |
80 |
103 |
56 |
SPMT(PD) 07T208 XOMT(PD) 07T025 |
|
SM30589 |
SDUM 20.5XD4 SP-XO07 |
|
20.5 |
25 |
34 |
163 |
82 |
103 |
56 |
|
|
SM30732 |
SDUM 21XD4 SP-XO07 |
|
21 |
25 |
34 |
163 |
84 |
107 |
56 |
|
|
SM30596 |
SDUM 21.5XD4 SP-XO07 |
|
21.5 |
25 |
34 |
167 |
86 |
107 |
56 |
|
|
SM30602 |
SDUM 22XD4 SP-XO07 |
|
22 |
25 |
34 |
167 |
88 |
111 |
56 |
|
|
SM30619 |
SDUM 22.5XD4 SP-XO07 |
|
22.5 |
25 |
34 |
173 |
90 |
111 |
56 |
|
|
SM30626 |
SDUM 23XD4 SP-XO07 |
|
23 |
25 |
34 |
173 |
92 |
117 |
56 |
|
|
SM30633 |
SDUM 23.5XD4 SP-XO07 |
|
23.5 |
25 |
34 |
178 |
94 |
117 |
56 |
|
File Request Form
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D12.5 - D13.5 |
SPMT(PD)040204 XOMT(PD) 040204 |
SSV M2x4-9521 |
STK-T06-9906 |
0,6 |
|
D14 - D16 |
SPMT(PD)050204 XOMT(PD) 050204 |
|||
|
D16.5 - D19.5 |
SPMT(PD) 060205 XOMT(PD) 060204 |
SSV M2.2x5-9503 |
0,85 |
|
|
D20 - D23.5 |
SPMT(PD) 07T208 XOMT(PD) 07T205 |
SSV M2.5x6-9505 |
STK-T08-9908 |
1,2 |
