U-Drills

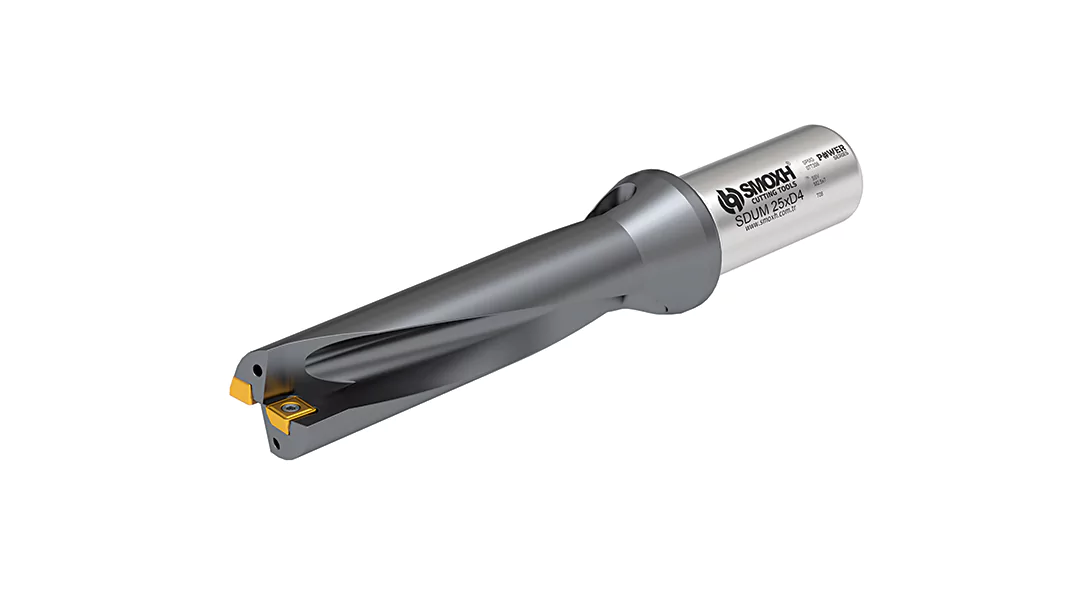

SDUM Dx4 - SPMG 090408 / 110408 / 140512 U-DRILL

Ordering Code	Item Designation	Dimensions (mm)								Master Insert*

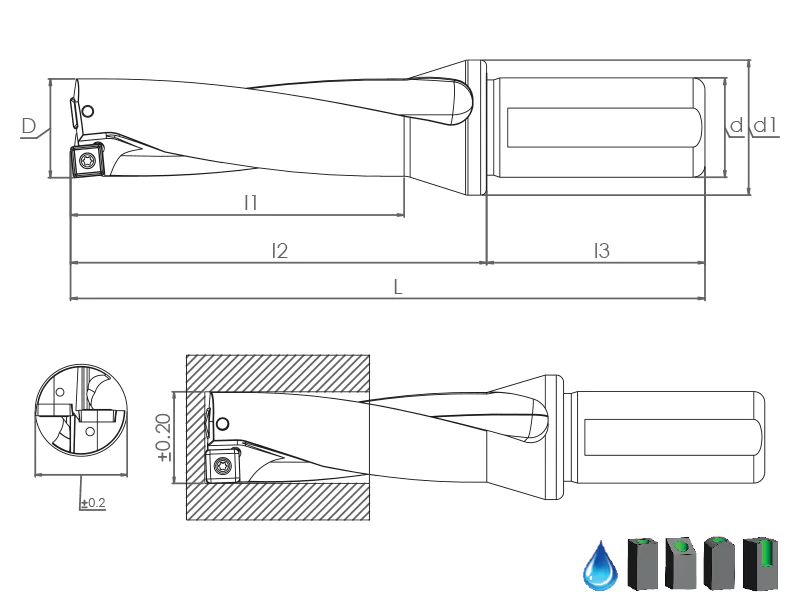

SDUM Dx4 - SPMG 090408 / 110408 / 140512 U-DRILL			D	d	d1	L	l1	l2	l3
	SDUM 28XD4 SPMG 090408		28	25	34	196	112	140	56	SPMG 090408
	SDUM 28.5XD4 SPMG 090408		28.5	25	34	200	114	140	56
	SDUM 29XD4 SPMG 090408		29	25	34	200	116	144	56
	SDUM 29.5XD4 SPMG 090408		29.5	25	34	202	118	144	56
	SDUM 30XD4 SPMG 090408		30	32	44	201	120	141	60
	SDUM 31XD4 SPMG 090408		31	32	44	206	124	145	60
	SDUM 32XD4 SPMG 090408		32	32	44	210	128	149	60
	SDUM 33XD4 SPMG 090408		33	32	44	215	132	154	60
	SDUM 33.5XD4 SPMG 090408		33.5	32	44	219	134	158	60
	SDUM 34XD4 SPMG 110408		34	32	44	219	136	158	60	SPMG 110408
	SDUM 35XD4 SPMG 110408		35	32	44	224	140	166	60
	SDUM 36XD4 SPMG 110408		36	32	44	229	144	169	60
	SDUM 37XD4 SPMG 110408		37	32	44	234	148	172	60
	SDUM 38XD4 SPMG 110408		38	32	44	239	152	178	60
	SDUM 38.5XD4 SPMG 110408		38.5	32	44	243	154	181	60
	SDUM 39XD4 SPMG 110408		39	32	44	243	156	181	60
	SDUM 40XD4 SPMG 110408		40	32	44	248	160	188	60
	SDUM 41XD4 SPMG 110408		41	32	44	253	164	191	60
	SDUM 42XD4 SPMG 140512		42	32	44	257	168	195	60	SPMG 140512
	SDUM 43XD4 SPMG 140512		43	32	44	262	172	197	60
	SDUM 44XD4 SPMG 140512		44	32	44	266	176	200	60

Size Designation	Master Insert*	Spare Parts
		Screw	Torx Key	Screw Torque Value
				N.m
D28 - D33	SPMG 090408	SSV M3.5x10-9511	STK-T15-9910	2,9
D34 - D41	SPMG 110408	SSV M4x10-9514	STK-T15-9910	2,9
D42 - D44	SPMG 140512	SSV M5x13-9519	STK-T20-9911	8,5
