SDUM Dx3 - SPMT/XOMT (PD) SPMT 040204 / 050204 / 060205 / 07T208 XOMT 040204 / 050204 / 060204 / 07T205 U-DRILL

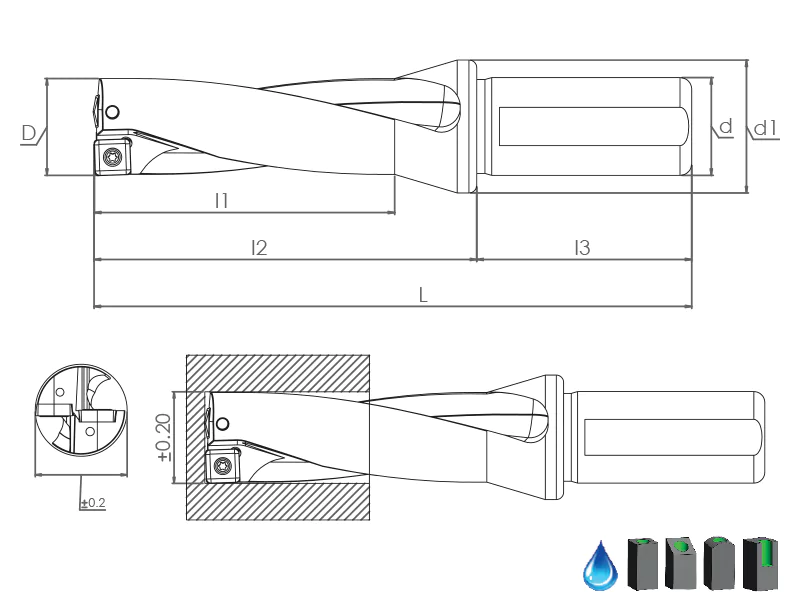

--SPMT-040204---050204---060205---07T208-XOMT-040204---050204---060204---07T205-U-DRILL-teknik-resim.webp)

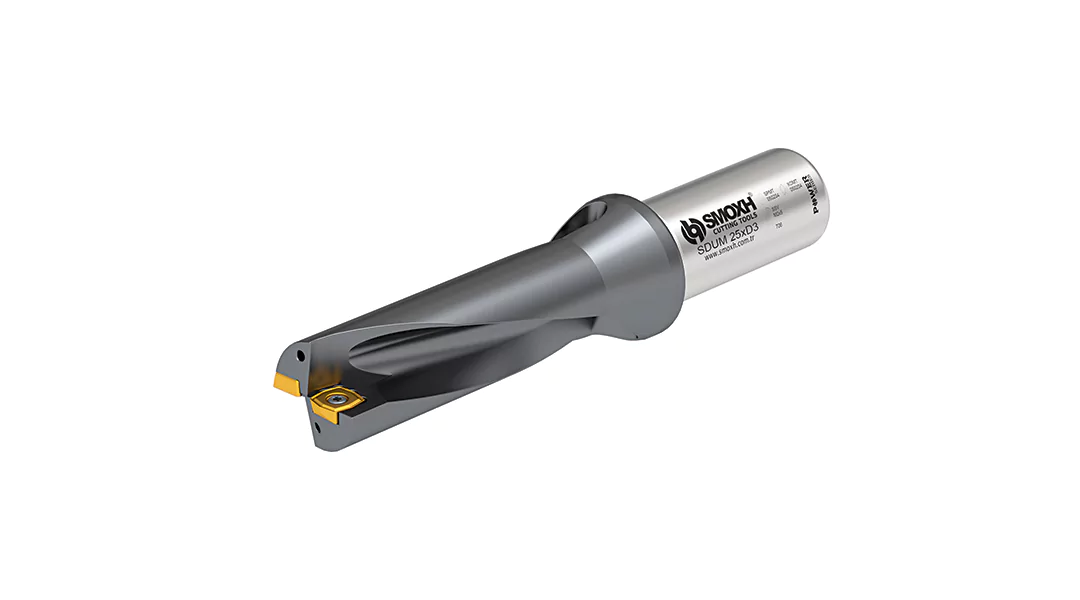

--SPMT-040204---050204---060205---07T208-XOMT-040204---050204---060204---07T205-U-DRILL.webp)
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
|||||||
|
SDUM Dx3 - SPMT/XOMT (PD) SPMT 040204 / 050204 / 060205 / 07T208 XOMT 040204 / 050204 / 060204 / 07T205 U-DRILL |
|
D |
d |
d1 |
L |
l1 |
l2 |
l3 |
|
|
|
SM30039 |
SDUM 12.5XD3 SP-XO04 |
|
12.5 |
20 |
25 |
107 |
37 |
57 |
50 |
SPMT(PD)040204 XOMT(PD)040204 |
|
SM30046 |
SDUM 13XD3 SP-XO04 |
|
13 |
20 |
25 |
107 |
39 |
57 |
50 |
|
|
SM30053 |
SDUM 13.5XD3 SP-XO04 |
|
13.5 |
20 |
25 |
110 |
40.5 |
60 |
50 |
|
|
SM37519 |
SDUM 14XD3 SP-XO05 |
|
14 |
20 |
25 |
110 |
42 |
60 |
50 |
SPMT(PD)050204 XOMT(PD)050204 |
|
SM30077 |
SDUM 14.5XD3 SP-XO05 |
|
14.5 |
20 |
25 |
113 |
43.5 |
63 |
50 |
|
|
SM37526 |
SDUM 15XD3 SP-XO05 |
|
15 |
20 |
25 |
113 |
45 |
63 |
50 |
|
|
SM30091 |
SDUM 15.5XD3 SP-XO05 |
|
15.5 |
20 |
25 |
118 |
46.5 |
68 |
50 |
|
|
SM38899 |
SDUM 16XD3 SP-XO05 |
|
16 |
25 |
34 |
124 |
48 |
68 |
56 |
|
|
SM30114 |
SDUM 16.5XD3 SP-XO06 |
|
16.5 |
25 |
34 |
127 |
49.5 |
71 |
56 |
SPMT(PD) 060205 XOMT(PD)060204 |
|
SM30121 |
SDUM 17XD3 SP-XO06 |
|
17 |
25 |
34 |
127 |
51 |
71 |
56 |
|
|
SM30510 |
SDUM 17.5XD3 SP-XO06 |
|
17.5 |
25 |
34 |
131 |
52.5 |
75 |
56 |
|
|
SM30145 |
SDUM 18XD3 SP-XO06 |
|
18 |
25 |
34 |
131 |
54 |
75 |
56 |
|
|
SM30152 |
SDUM 18.5XD3 SP-XO06 |
|
18.5 |
25 |
34 |
134 |
55.5 |
78 |
56 |
|
|
SM30169 |
SDUM 19XD3 SP-XO06 |
|
19 |
25 |
34 |
134 |
57 |
78 |
56 |
|
|
SM30176 |
SDUM 19.5XD3 SP-XO06 |
|
19.5 |
25 |
34 |
139 |
58.5 |
83 |
56 |
|
|
SM30183 |
SDUM 20XD3 SP-XO07 |
|
20 |
25 |
34 |
139 |
60 |
83 |
56 |
SPMT(PD) 07T208 XOMT(PD) 07T025 |
|
SM30190 |
SDUM 20.5XD3 SP-XO07 |
|
20.5 |
25 |
34 |
142 |
61.5 |
88 |
56 |
|
|
SM30343 |
SDUM 21XD3 SP-XO07 |
|
21 |
25 |
34 |
142 |
63 |
88 |
56 |
|
|
SM30206 |
SDUM 21.5XD3 SP-XO07 |
|
21.5 |
25 |
34 |
145 |
64.5 |
89 |
56 |
|
|
SM30213 |
SDUM 22XD3 SP-XO07 |
|
22 |
25 |
34 |
145 |
66 |
89 |
56 |
|
|
SM30220 |
SDUM 22.5XD3 SP-XO07 |
|
22.5 |
25 |
34 |
150 |
67.5 |
94 |
56 |
|
|
SM30237 |
SDUM 23XD3 SP-XO07 |
|
23 |
25 |
34 |
150 |
69 |
94 |
56 |
|
|
SM30244 |
SDUM 23.5XD3 SP-XO07 |
|
23.5 |
25 |
34 |
154 |
70.5 |
98 |
56 |
|
File Request Form
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D12.5 - D13.5 |
SPMT(PD)040204 XOMT(PD) 040204 |
SSV M2x4-9521 |
STK-T06-9906 |
0,6 |
|
D14 - D16 |
SPMT(PD)050204 XOMT(PD) 050204 |
|||
|
D16.5 - D19.5 |
SPMT(PD) 060205 XOMT(PD) 060204 |
SSV M2.2x5-9503 |
0,85 |
|
|
D20 - D23.5 |
SPMT(PD) 07T208 XOMT(PD) 07T205 |
SSV M2.5x6-9505 |
STK-T08-9908 |
1,2 |
