S Systems External Tools
SDHC R/L (107.5)

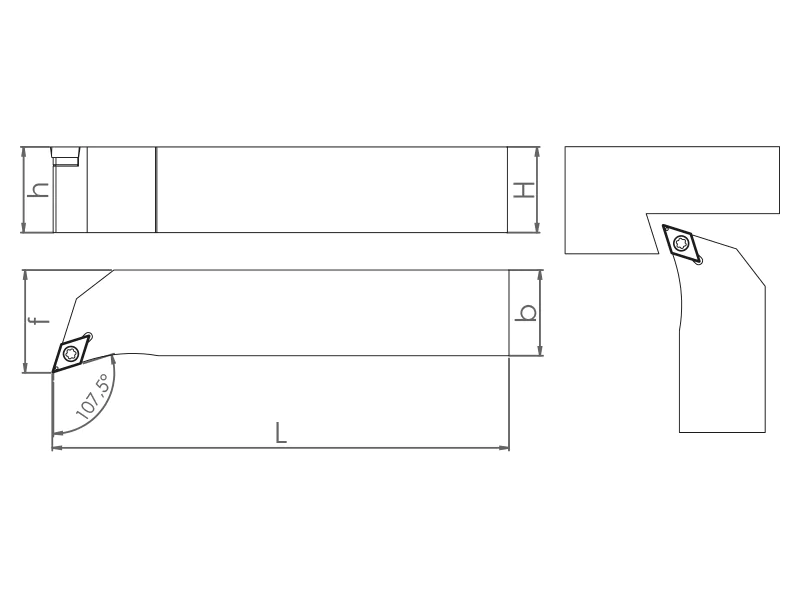

-teknik-resim.webp)

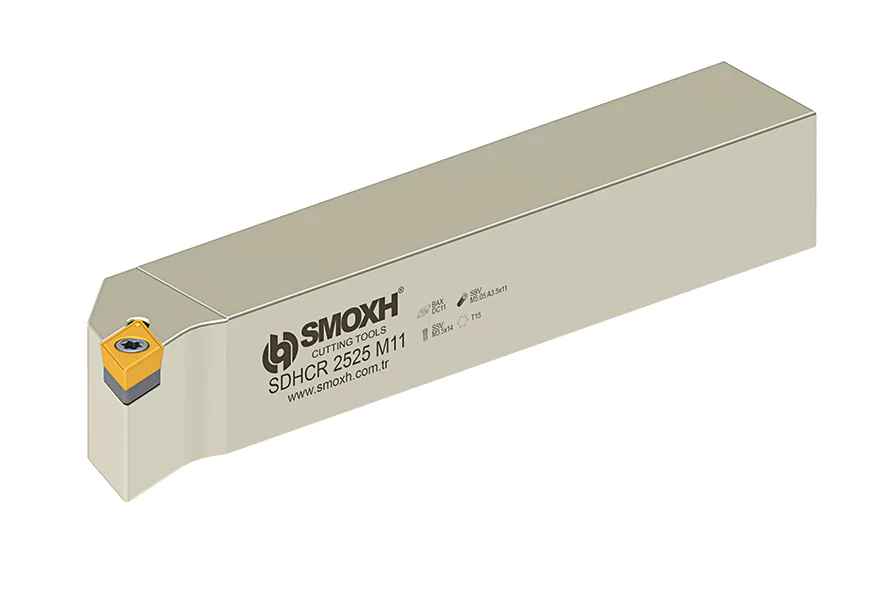

.webp)
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
||||
|
Direction |
SDHC R/L (107.5) |
h=H |
b |
L |
f |
|
|
|
Right |
Left |
||||||
|
SM02708 |
SM02715 |
SDHC R/L 0808 E07 |
8 |
8 |
70 |
10 |
DCM. 0702.. |
|
SM02654 |
SM02661 |
SDHC R/L 1010 E07 |
10 |
10 |
70 |
12 |
|
|
SM02722 |
SM02739 |
SDHC R/L 1212 F07 |
12 |
12 |
80 |
15 |
|
|
SM02746 |
SM02753 |
SDHC R/L 1616 H07 |
16 |
16 |
100 |
20 |
|
|
SM02906 |
SM02913 |
SDHC R/L 1616 H11 |
16 |
16 |
100 |
20 |
DCM. 11T3.. |
|
SM02814 |
SM02876 |
SDHC R/L 2020 K11 |
20 |
20 |
125 |
25 |
|
|
SM02920 |
SM02937 |
SDHC R/L 2525 M11 |
25 |
25 |
150 |
29 |
|
|
SM02944 |
SM02951 |
SDHC R/L 3232 P11 |
32 |
32 |
170 |
38 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
|||
|
|
Clamp Screw |
Shim |
Shim Screw |
Torx Key |
|
|
|
|
|
|
||
|
0808 - 1616 |
DCM. 0702.. |
SSV M2.5x6-9505 |
- |
- |
STK-T08-9908 |
|
1212 - 1616 |
DCM. 11T3.. |
SSV M3.5x10-9511 |
BAX DC11-9613 |
SBV5 M5x0.5 A3.5x9-9408 |
STK-T15-9910 |
|
2020 - 3232 |
SSV M3.5x14-9512 |
SBV M5.05 A3.5x11-9407 |
|||
|
2525-JT |
SSV M3.5x10-9511 |
SBV5 M5x0.5 A3.5x9-9408 |
|||
