High Feed Milling Tools

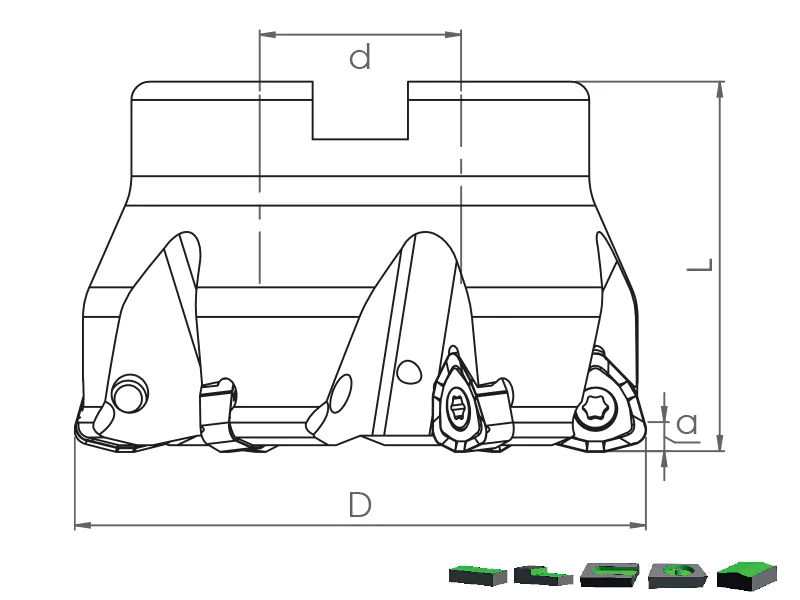

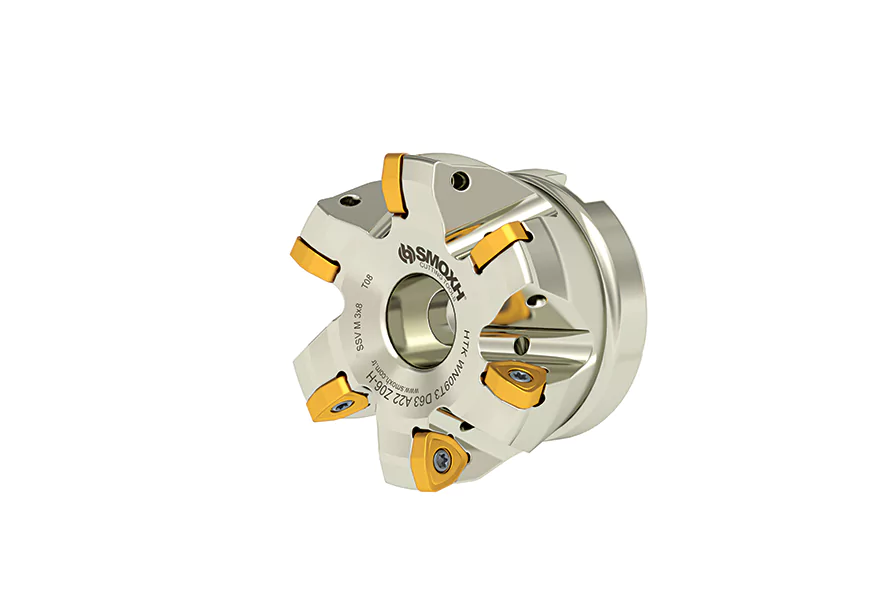

HTK WNMX 09T3..
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
|||||
|
HTK WNMX 09T3.. |
|
D |
Z |
d |
L |
a |
|
|
|
SM28081 |
HTK WN09T3 D40 A16 Z04-H |
|
40 |
4 |
16 |
40 |
1.5 |
WNMX 09T3.. |
|
SM28074 |
HTK WN09T3 D50 A22 Z05-H |
|
50 |
5 |
22 |
40 |
1.5 |
|
|
SM56008 |
HTKL WN09T3 D50 A22 Z05-H** |
|
50 |
5 |
22 |
40 |
1.5 |
|
|
SM51973 |
HTK WN09T3 D52 A22 Z05-H |
|
52 |
5 |
22 |
40 |
1.5 |
|
|
SM22560 |
HTK WN09T3 D63 A22 Z06-H |
|
63 |
6 |
22 |
40 |
1.5 |
|
|
SM56015 |
HTKL WN09T3 D63 A22 Z06-H** |
|
63 |
6 |
22 |
40 |
1.5 |
|
|
SM51980 |
HTK WN09T3 D66 A27 Z06-H |
|
66 |
6 |
27 |
50 |
1.5 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Size Designation |
Master Insert* |
Spare Parts |
||
|
|
Screw |
Torx Key |
Screw Torque Value |
|
|
|
|
|
||
|
D17 - D21 |
WNMX 0603.. |
SSV M2.5x6-9505 |
STK-T08-9908 |
1,2 |
|
D25 - D33 |
SSV M2.5x7-9506 |
|||
|
D25 - D66 |
WNMX 09T3.. |
SSV M3x8-9508 |
1,9 |
|
Product Notes
