High Feed Milling Tools

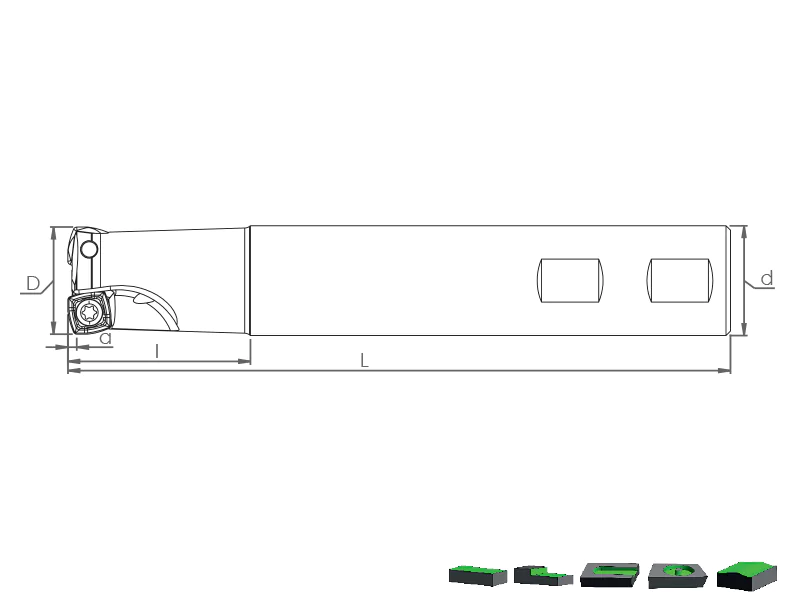

HST XPLT 0603.. / XDLT 0904..

HST XPLT 0603.. / XDLT 0904..
HST XPLT 0603.. / XDLT 0904..

Ordering Code

Item Designation

Dimensions (mm)

Master Insert*

HST

XPLT 0603.. / XDLT 0904..

D

d

Z

L

l

a

SM46412

HST XPLT06 D16 W16 L150 Z02-H

16

16

2

150

40

0.9

XPLT 0603..

SM46429

HST XPLT06 D20 W20 L150 Z03-H

20

20

3

150

40

0.9

SM46436

HST XPLT06 D25 W25 L150 Z04-H

25

25

4

150

40

0.9

SM46443

HST XPLT06 D32 W32 L150 Z05-H

32

32

5

150

40

0.9

SM45354

HST XDLT09 D25 W25 L150 Z02-H

25

25

2

150

40

1.45

XDLT 0904..

SM45361

HST XDLT09 D32 W32 L150 Z03-H

32

32

3

150

40

1.45

SM45378

HST XDLT09 D40 W32 L150 Z04-H

40

32

4

150

40

1.45

Size Designation

Master Insert*

Spare Parts

Screw

Torx Key

Screw Torque Value

N.m

D16

XPLT 0603..

SSV M2.5x6-9505

STK-T08-9908

1,2

D20 - D32

SSV M2.5x7-9506

D25 - D63

XDLT 0904..

SSV M3.5x8 SC-9513

STK-T10-9909

2,9
Product Notes
