High Feed Milling Tools

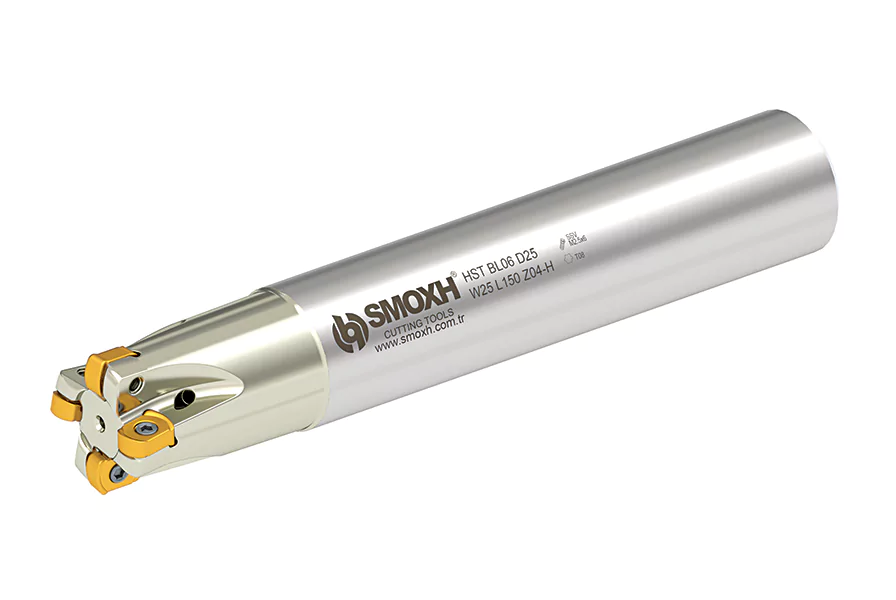

HST BLMP 0603.. / 0904.. / 1105..

HST BLMP 0603.. / 0904.. / 1105..
HST BLMP 0603.. / 0904.. / 1105..

Ordering Code

Item Designation

Dimensions (mm)

Master Insert*

HST BLMP

0603.. / 0904.. / 1105..

D

d

Z

L

l

a

HST BL06 D16 W16 L120 Z02-H

16

16

2

120

30

0.7

BLMP 0603..

HST BL06 D17 W16 L150 Z02-H

17

16

2

150

30

1

HST BL06 D20 W20 L150 Z03-H

20

20

3

150

40

1

HST BL06 D20 C20 L200 Z03

-

20

20

3

200

50

1

HST BL06 D21 W20 L150 Z03-H

21

20

3

150

30

1

HST BL06 D25 W25 L150 Z04-H

25

25

4

150

40

1

HST BL06 D25 C25 L200 Z04

-

25

25

4

200

50

1

HST BL06 D26 W25 L150 Z04-H

26

25

4

150

30

1

HST BL06 D32 W32 L150 Z05-H

32

32

5

150

40

1

HST BL06 D32 C32 L200 Z05

-

32

32

5

200

50

1

HST BL06 D35 W32 L150 Z05-H

32

32

5

150

30

1

HST BL09 D25 W25 L150 Z03-H

25

25

3

150

40

1.5

BLMP 0904..

HST BL09 D26 W25 L150 Z03-H

26

25

3

150

30

1.5

HST BL09 D32 W32 L150 Z04-H

32

32

4

150

40

1.5

HST BL09 D33 W32 L150 Z04-H

33

32

4

150

30

1.5

HST BL11 D33 W32 L150 Z02-H

33

32

2

150

30

2

BLMP 1105..

HST BL11 D35 W32 L150 Z03-H

35

32

3

150

30

2

Size Designation

Master Insert*

Spare Parts

Screw

Torx Key

Screw Torque Value

N.m

D16 - D42

BLMP 0603..

SSV

M2.5x6-9505

STK-T08-9908

1,2

D50

SSV

M2.5x7-9507

D25 - D63

BLMP 0904..

SSV M3.5x8-SC-9513

STK-T10-9909

2,9

D32 - D66

BLMP 1105..

SSV M5x13-9519

STK-T20-9911

8,5
