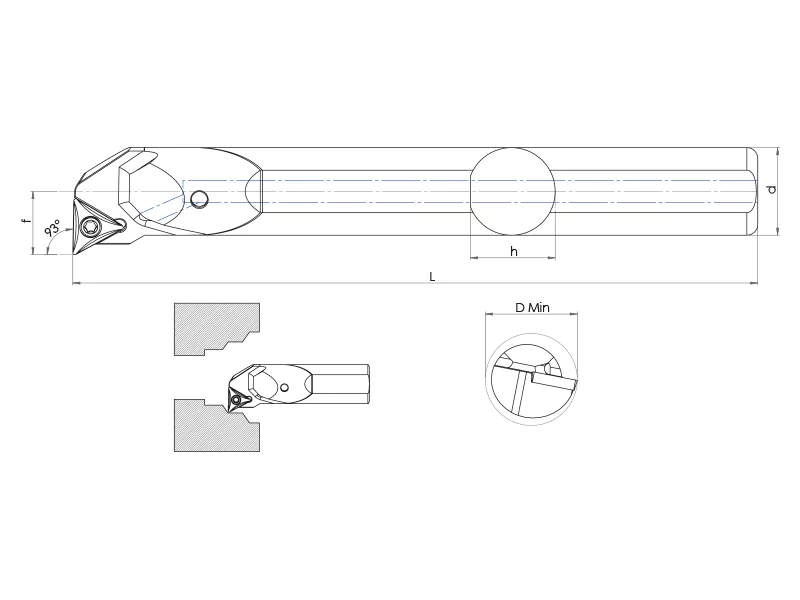

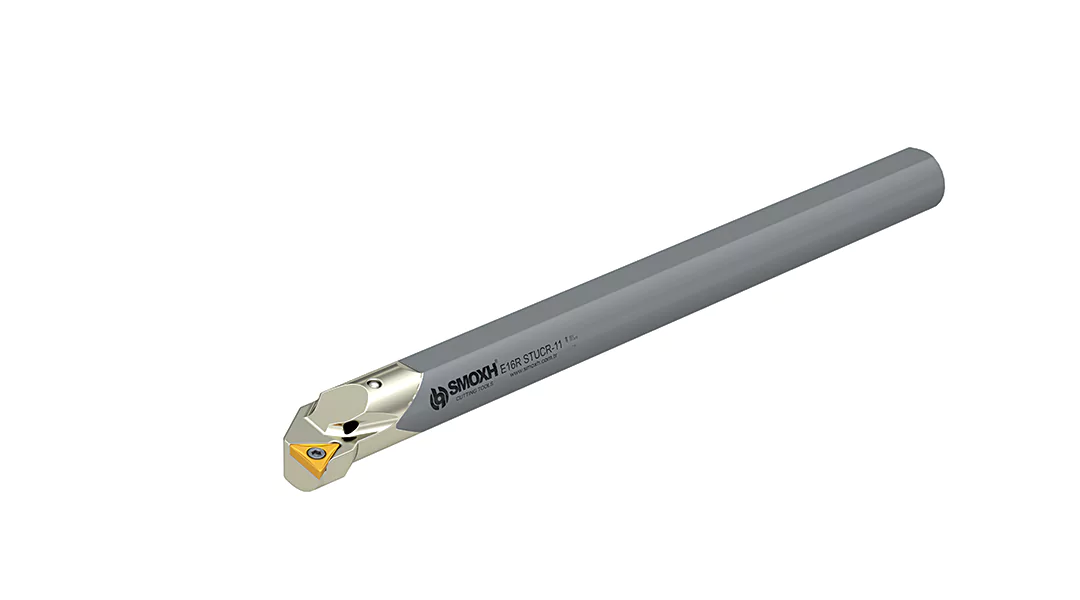

E-STUC R/L(93)
-teknik-resim.webp)
.webp)
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
||||||
|
Direction |
E-STUC R/L(93) |
d |
h |
L |
f |
L1 |
D min |
|
|
|
Right |
Left |
||||||||
|
SM60234 |
SM60272 |
E10M STUC R/L-09 |
10 |
9.5 |
150 |
8 |
- |
≥13 |
TCM.0902.. |
|
SM60241 |
SM60289 |
E12Q STUC R/L-09 |
12 |
11 |
180 |
10 |
- |
≥16 |
|
|
SM60258 |
SM60296 |
E12Q STUC R/L-11 |
12 |
11 |
180 |
10 |
- |
≥21 |
TCM.1102.. |
|
SM60265 |
SM60302 |
E16R STUC R/L-11 |
16 |
15 |
200 |
13 |
- |
≥25 |
|
File Request Form
Please fill in the required fields and check the e-mail address.
Something went wrong.
Please try again!
Your information has been saved.
We will contact you as soon as possible.
|
Descriptions |
Master Insert* |
Spare Parts |
|||
|
|
Screw |
Shim |
Shim Screw |
Torx Key |
|
|
|
|
|
|
||
|
E10.. - E12.. |
TCM.0902.. |
SSV M2.2x5-9503 |
- |
- |
STK-T06-9906 |
|
E16.. |
TCM.1102.. |
SSV M2.5x5-9504 |
STK-T08-9908 |
||
